Data Loggers

Satellite

Cellular

Ordering Options

• iRIS 150FXC. Has an external 14 way terminal block fitted to the base of the enclosure

• iRIS 150FXG. Has two NG12 compression glands providing cable access to a small 12 way I/O connector inside the unit.

  Accessories

• Environmental Enclosure

• Rechargeable 12V Battery

• Solar Panel

• Solar Charge Controller

Download Specification Sheet

Watch Video

The iRIS150FX is a compact data logger featuring a built-in digital display. Available with external 14 way terminal block fitted to the base of the enclosure or with two NG12 compression glands providing cable access to a small 12 way I/O connector inside the unit.

The iRIS150 data logger can be connected to a wide variety of sensors, and features two analog (0-5V, 0-20mA) inputs, two digital inputs, SDI-12 serial instrument support and a single digital output for alarm or control purposes.

Primary communication is RS232 for on-site data monitoring, the iRIS150FX can be paired with a cellular modem for wireless data management. Contact us for more details.

Power Supply

• External DC supply: Range 5-15V.

• Reverse polarity/over voltage protected.

• Internal lithium battery: AA-size 3.6V, 2400 mA/hr on iRIS 150C or a D-size 19000mA/Hr on iRIS 150G.

Data Storage

8MB flash memory (1,048,576 samples). A typical site with 2 parameters logged every 15 minutes plus battery voltage logged hourly will give 12 years of storage before data overwrite occurs.

Communications

• SDI-12 instrumentation port.

• Non-isolated DTE RS232 at 1200 - 115200 bps (default 38400 bps)

Environmental

• Operating: -10ºC - +70ºC.

• Storage: -20ºC - +85ºC

• Enclosure: IP65 unless the USB port is opened.

DOWNLOAD SPECIFICATION SHEET

Accessories for environmental applications

• Environmental Enclosure

• Rechargeable 12V Battery

• Solar Panel

• Solar Charge Controller

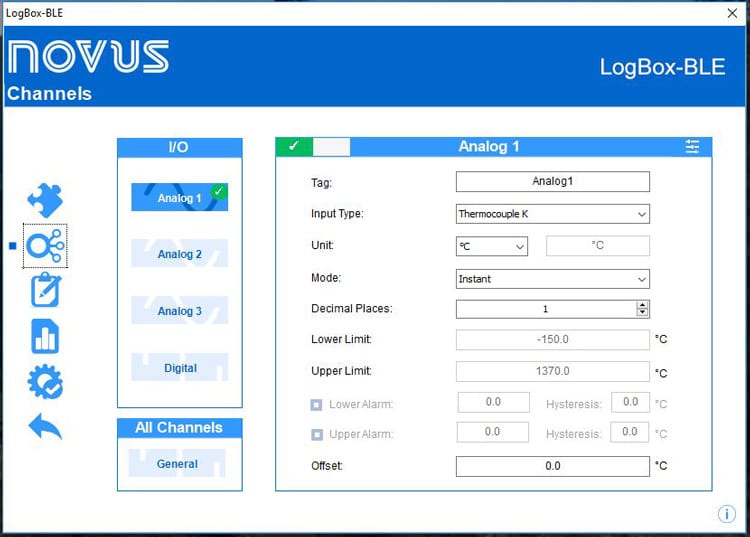

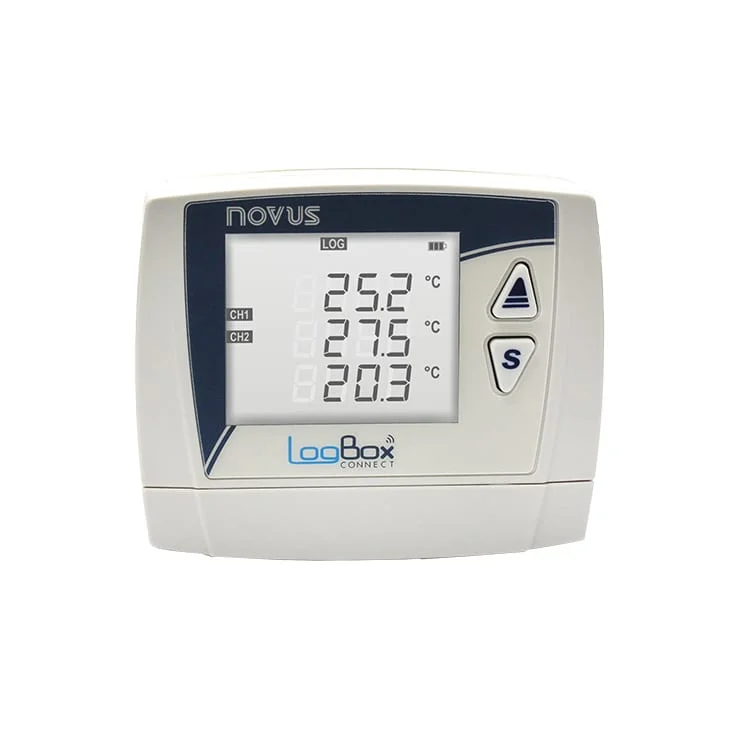

The Novus LogBox BLE provides up to three universal analog inputs, 1 digital input and 1 digital output with wireless Bluetooth and compatibility with the NOVUS Cloud web portal. The universal inputs accept thermocouples and RTD’s for temperature plus voltage and 4-20 mA signals. The digital channel can either record events with a time stamp, such as opening a door or counting pulses from rain gauges or flow sensor. The LogBox can store up to 140,000 points in internal memory and also features a large display and removable bracket and connectors. Configuration and data downloading can be performed with the mobile application, NXperience BLE or the Windows software NXperience, which can access the LogBox via USB.

The LogBox BLE is the first data logger in the Connect family and can be used for applications that require accuracy in the recording of temperature data, such as laboratories, cold rooms, data centers, and more.

Features

• 3 Universal analog inputs – TC, RTD, Voltage or 4-20 mA

• 1 Digital input

• 1 Digital output

• 3 Line 4.5 digit display

• Storage for 140,000 data points

• Bluetooth low energy (BLE) and USB interfaces

• Battery or external DC supply

Communication Options

• Bluetooth and USB

• WiFi

• 3G Cellular

  Need help deciding which one works best for you? give us a call

• Up to 6 Analog (± 50V) sensor inputs

• 8 flexible digital terminals

• 1 Serial ‘Smart Sensor’ port

• SDI-12 (multiple networks)

• Programmable Analog Output

• Modbus for SCADA connection

• Web & FTP client / server

• USB memory for easy data and program transfer

The DT82E smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT82E is a robust, stand alone, low power data logger featuring USB memory stick support, 18-bit resolution, extensive communications capabilities and built-in display.

The dataTaker DT82E’s Dual Channel concept allows up to 4 isolated or 6 common referenced analog inputs to be used in many combinations. With support for 1 SDI-12 sensor networks, Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT82E is a totally self-contained solution.

Versatile Measurement

Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels. Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting. Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82E flexibility.

Superior Data Storage & Communications

With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232 and Ethernet, connect to the DT82E locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT82E, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specifi c host software.
