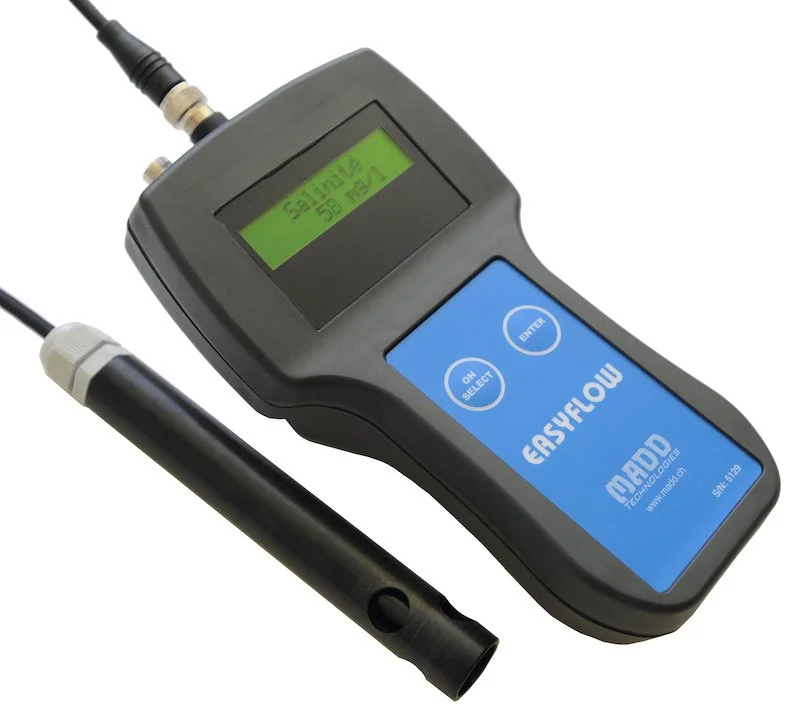

Tracer Dilution Flow Meter for Stream and Open Channel Flow Measurement - EasyFlow

The EasyFlow is a compact, lightweight flow measurement instrument designed for professionals who perform occasional stream gauging and open channel flow measurements. It uses the tracer dilution method with salt as the tracer, allowing a single user to measure flow in turbulent watercourses, torrents, and natural channels in just a few minutes.

Request Pricing and Lead Time
EasyFlow Datasheet

Product Description

The EasyFlow current meter is built for rapid flow measurement in applications where traditional velocity-based gauging can be difficult, time-consuming, or impractical. The EasyFlow System is especially well suited for torrents, wild watercourses, and other turbulent channels where good mixing can be achieved. The system works by injecting a known quantity of salt upstream and measuring downstream conductivity over time to calculate flow by tracer dilution integration.

EasyFlow is intended for professional users who need a practical field instrument for occasional gauging without the complexity of larger multi-site recording systems. The instrument is supplied with a conductivity probe, 10 m cable, calibration doses, communication cable, and EasyViewer software for transferring data to a PC, reviewing the gauging curve, and correcting the flow calculation when needed.

Because it relies on salt dilution rather than point velocity measurement, EasyFlow can be a very effective solution in shallow, fast, and turbulent streams where conventional methods may be more difficult to deploy. The manufacturer states that a single operator can often complete a measurement in less than an hour, while comparable reel-based measurements may take significantly longer.

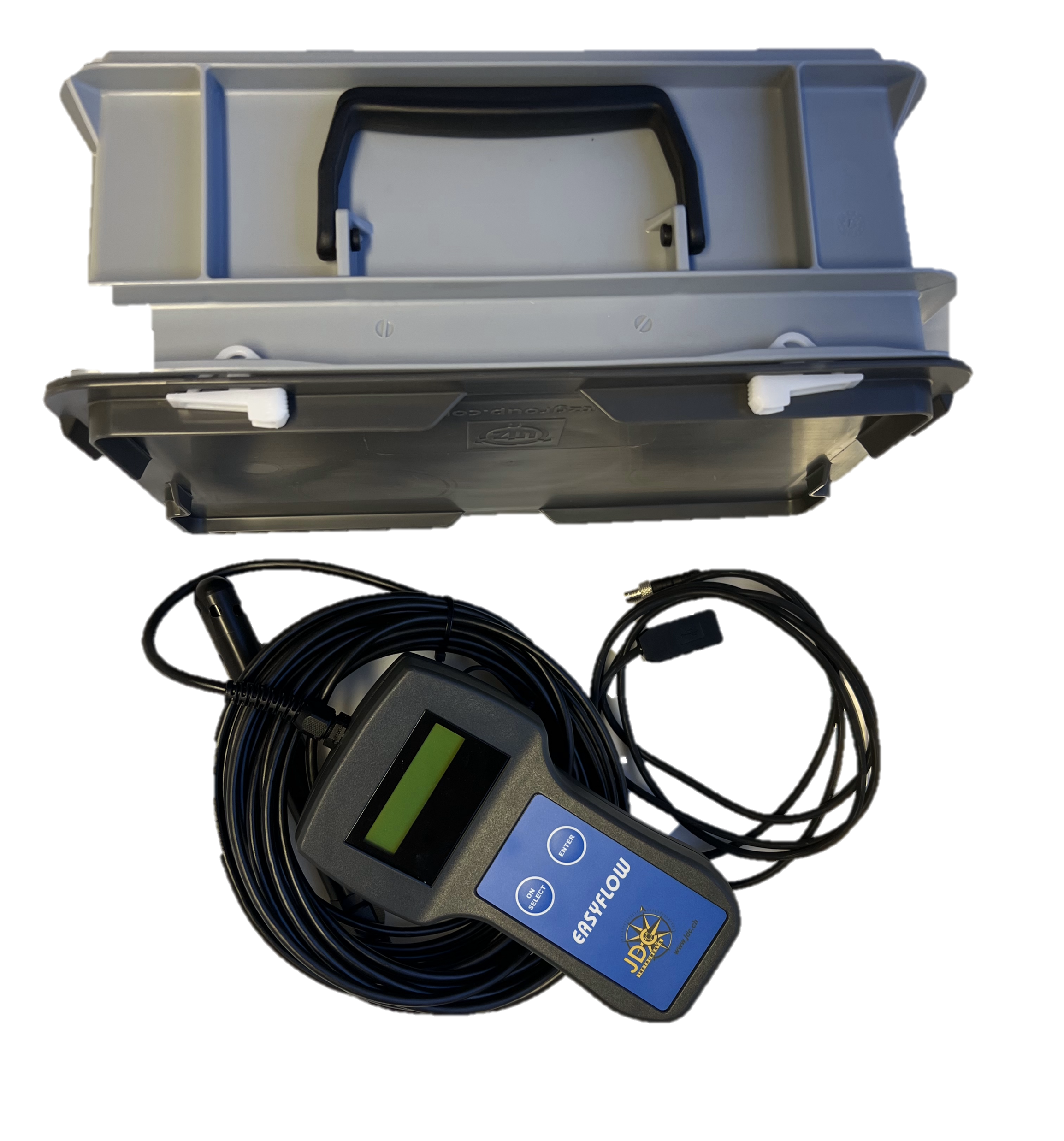

EasyFlow Tracer Dilution Flow Meter - Complete Kit

Key-Features

  • Fast stream and open channel flow measurement using tracer dilution

  • Designed for occasional professional flow gauging

  • Ideal for torrents, natural streams, and turbulent watercourses

  • Uses salt (NaCl) as a low-cost, easy-to-source tracer

  • Compact, lightweight, and field-portable design

  • Waterproof IP65 instrument housing

  • Includes conductivity probe with 10 m cable

  • EasyViewer software for data transfer, curve review, and flow correction

  • Displays flow, temperature, and salinity

  • Operates on standard AA batteries with about 100 hours of normal service life

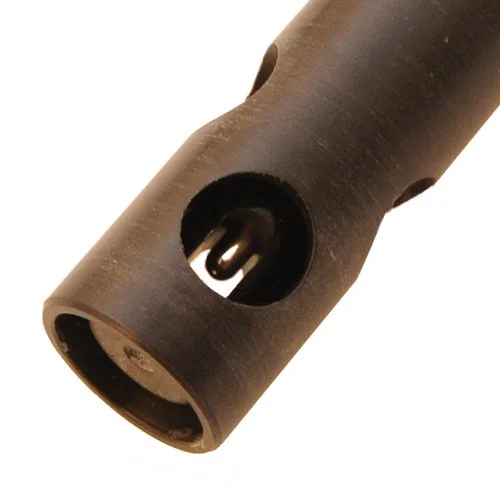

EasyFlow Tracer Dilution Flow Meter Probe

Typical Applications

  • Stream gauging

  • Mountain streams and torrents

  • Hydrological field studies

  • Open channel flow checks

  • Environmental monitoring

  • Water resource investigations

  • Occasional discharge verification in natural channels

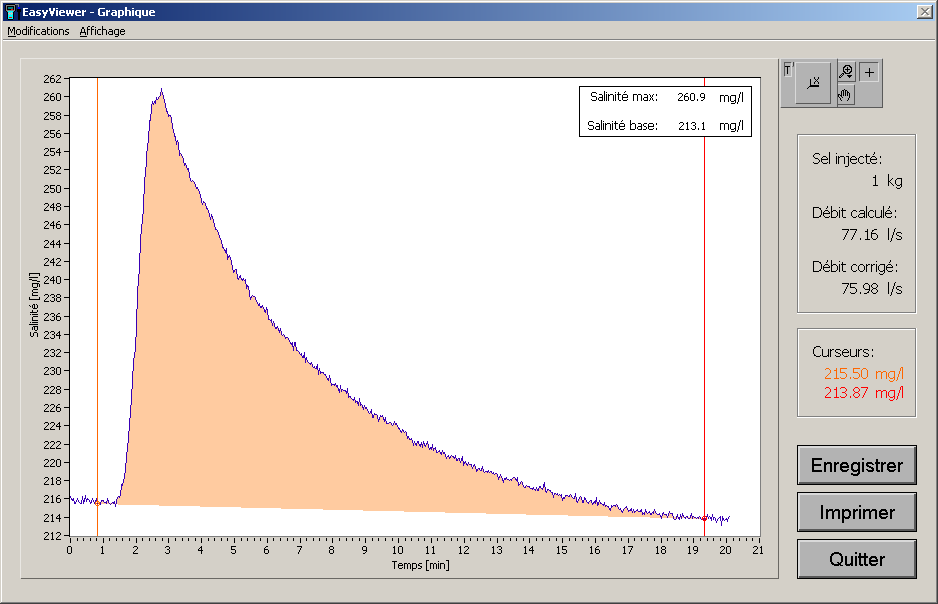

EasyFlow View Software for Tracer Dilution Flow Meter

EasyFlow Software Functions

  • Loading measurement data from EasyFlow

  • Display of the gauging curve and possibility of graphically correcting the flow calculation

  • Addition of information on gauging, such as water level height

  • Software in three languages: German, English or French

  • The principle of the tracer dilution (or integration) method involves injecting a certain volume of tracer into the flow. Downstream, at a sufficient distance to ensure good mixing, the concentration of this tracer in the watercourse is measured. The flow rate is then obtained by integrating the concentration over time.

    Using this method, a single person can measure the flow of a watercourse in less than an hour, whereas an identical measurement using a reel would be much more tedious and would easily take 2 to 3 hours.

    Our EasyFlow device uses this method by dilution with cooking salt as a tracer. They are fitted with a probe that measures the conductivity of the water, which is linearly proportional to the concentration of salt dissolved in the water.

    Cooking salt has the advantage of being highly dilutable in water, non-polluting and absorbed very little by vegetation and riverbed materials. What's more, its low cost and ease of supply make it an ideal tracer.

  • Flow Measurement

    • Display range: 0.1 to 99,900 l/s

    • Measurement accuracy: under 5% with optimum tracer mixing

    • Gauging repeatability: ±1%

    Tracer Method

    • Tracer type: cooking salt (NaCl)

    • Salt quantity: 10 g to 100 kg

    • Recommended mixing guideline: 5 to 20 g of salt per l/s of estimated flow

    Salinity

    • Measurement range: 0 to 3200 mg/l

    • Sensitivity: 1 mg/l

    • Precision: < 3%.

    Temperature

    • Measurement range: 0 to 40 °C

    • Accuracy: ±0.2 °C

    General

    • Power supply: 3 x 1.5 V AA alkaline batteries

    • Battery life: about 100 hours

    • Communication: USB

    • Protection: IP65

    • Complete bag dimensions / weight: 260 x 190 x 130 mm / 1240 g

    • Instrument with probe dimensions / weight: 230 x 150 x 80 mm / 620 g

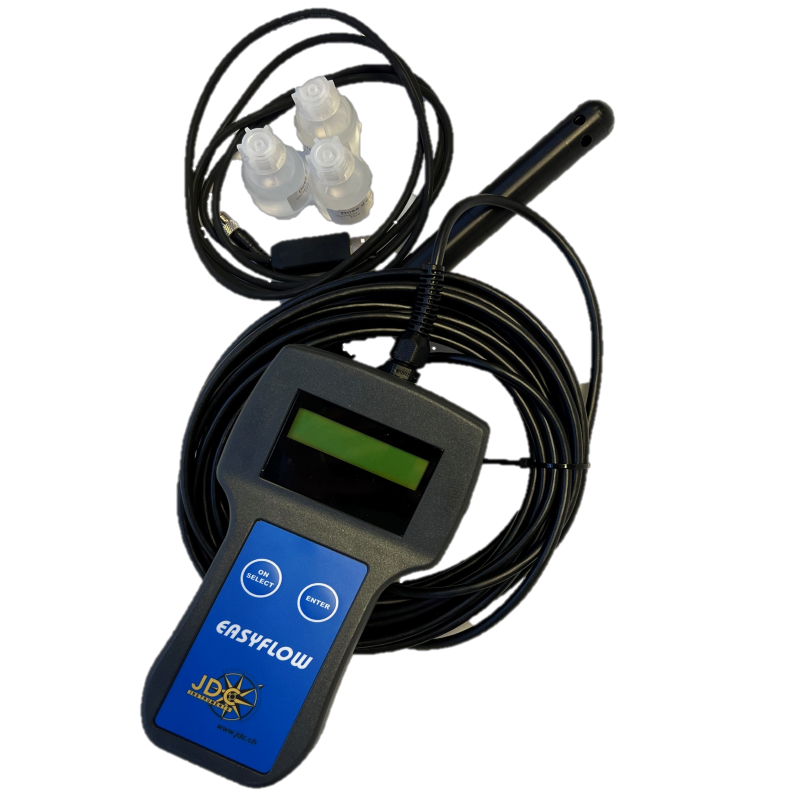

    • EasyFlow instrument

    • Conductivity probe

    • 10 m cable

    • Carrying bag or rigid transport case listing varies by source

    • 3 calibration doses

    • EasyViewer software

    • Quick-reference checklist / memory aid

    • USB communication cable

  • What is the EasyFlow used for?
    EasyFlow is used for measuring flow in streams, torrents, and other open channel watercourses using the tracer dilution method. It is designed for professional users who perform occasional field gauging.

    How does EasyFlow measure flow?
    It measures downstream conductivity after a known amount of salt is injected upstream. The device calculates flow by integrating the tracer concentration over time.

    Is EasyFlow suitable for turbulent streams?
    Yes. The manufacturer specifically positions it for torrents, wild watercourses, and other situations where strong mixing supports tracer dilution measurements

    Does EasyFlow include software?
    Yes. It includes EasyViewer software for transferring measurement data to a PC, viewing the gauging curve, and adjusting the flow calculation if needed.

    What tracer does EasyFlow use?
    EasyFlow uses common salt, or sodium chloride (NaCl), as the tracer.
