SONIC-PRO HYBRID ULTRASONIC FLOWMETERS

• User-selectable Doppler or Transit Time operating modes for measurement of both clean and dirty fluids

• The meter can be factory configured for easy installation

• Custom quality metric algorithms and DSP technology for reliable, high accuracy measurements

• To allow for changes in the fluid’s particle count, SonicPro monitors the signal gain and employs an
  Automatic Gain Control (AGC) algorithm that periodically adjusts the gain, maintaining the optimum power level

• Smart external communication with simple, intuitive, Sonic-Pro software

• Portable, rugged carrying case for easy transportation between applications

• 2 year factory warranty

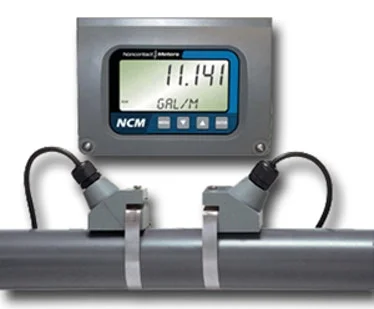

Clamp-On Non-Invasive Flow Measurement

The Noncontact Meters B/E Series dedicated ultrasonic flow meter is ideal for high-accuracy non-invasive flow measurement of full pipe clean and dirty (< 2% SS) liquid applications.

• Works on plastic and metal pipes 0.5" to 100"

• Measures bi-directional flow 0.1 FPS to 40 FPS

• A/C and D/C powered models

• Large backlit LCD display with keypad shows flow rate and totalizer

• Rugged NEMA 4X enclosure

• Standard outputs include 4-20 mA, Modbus RTU and pulse

• Advanced communications options available (Ethernet, BACnet, TCP/IP, and more)

EX800 Series Series

Fixed Depth Insertion Magmeter

• Low-flow performance and accuracy superior to any mechanical flow sensor

• No moving parts to wear out

• Dedicated fittings for simplicity

• Retainer clip automatically sets correct depth

• Meter extends only about 1/8 of pipe diameter, minimizing potential for clogging with debris

• Simple pulse train output can be used with any SeaMetrics signal processing module, or sent directly to a PLC

• Available for pipe sizes 1″ to 12″, in brass, 316 stainless, and PVC

EX100/200 Series

Adjustable Depth Insertion Magmeter

• Depth adjustable sensors

• EX110 fits any 1-1/2″ pipe fitting (standard saddle, for instance) and adjusts to pipe sizes 3-10″

• EX210 adjusts to pipe sizes 10-48″

• Meter extends only about 1/8 of pipe diameter, minimizing potential for clogging with debris

• Accept Seametrics modules for rate and total indication, 4-20 mA conversion, data logging, and flow switching

• Alternatively, signal can be sent directly to a PLC or other control

• Available in brass or 316 stainless steel

• Immersibility and reverse flow output available

EX150/250 Series

Hot-Tap Adjustable Depth Insertion Magmeter

• Isolation valve allows installation and removal under pressure

• Useful in large water utility pipe and other applications where shutdown is not an option

• EX150 fits pipe from 3″ to 10″

• EX250 fits pipe from 10″ to 48″

• Meter extends only about 1/8 of pipe diameter, minimizing potential for clogging with debris

• In most applications, installation tool not necessary due to small tube diameter

• Available in brass or 316 stainless steel

• Standard valve material is brass, with stainless optional

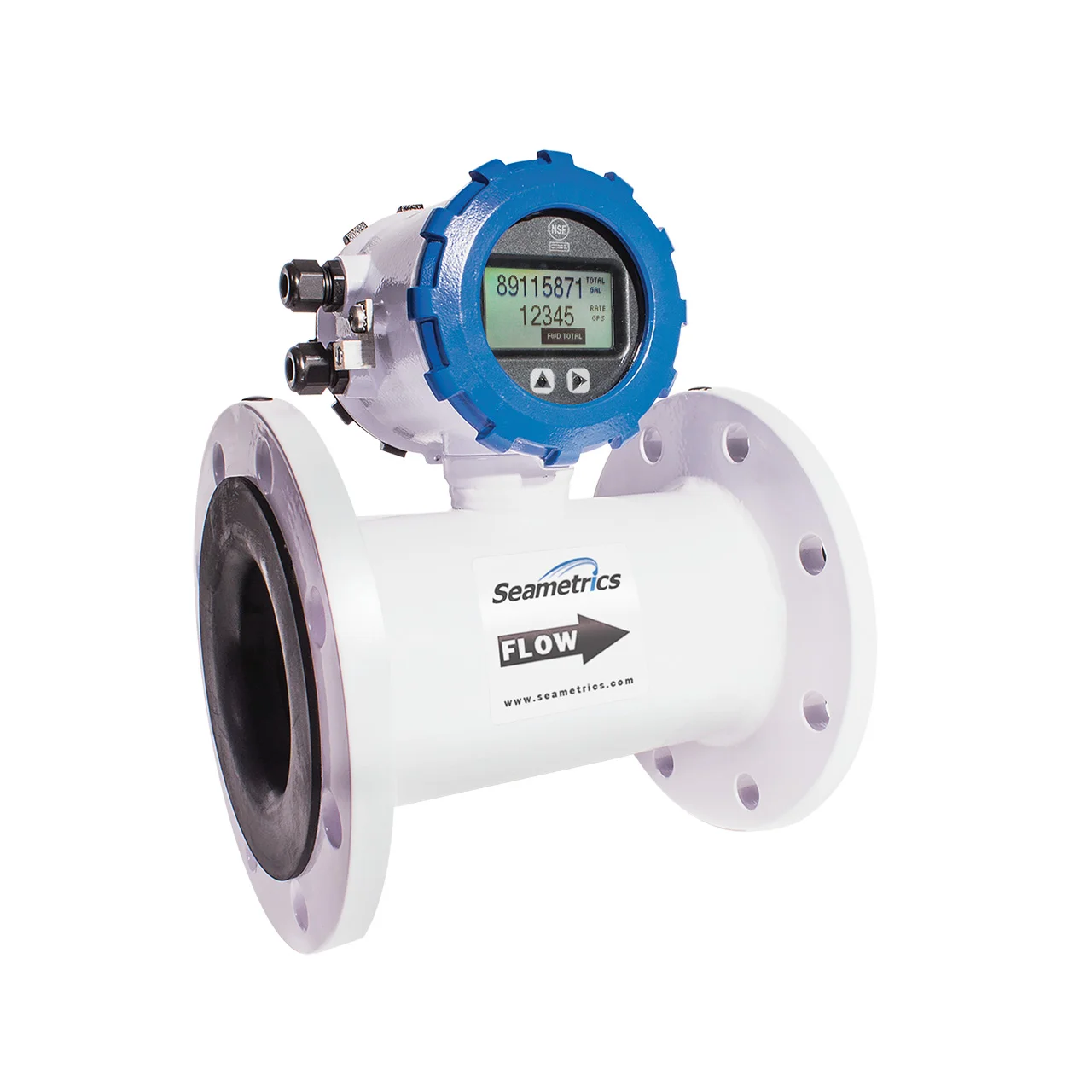

iMAG4700 Series

Premium Flanged In-line Magmeter, Includes One Pulse and 4-20mA Output

• Easy Setup

• External AC or DC power versions, with battery backup

• Minimal straight pipe

• Meter mounted rate/total indicator

• Pulse and 4-20mA output standard

• Additional optional output: HART/4-20mA, Modbus, or Digital

• Optional datalogger

• Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing

• NSF-61 approved, IP68 rated

• iMAG-4700 and iMAG4700r models also available
