UltraFlo 2000 In-Line Ultrasonic Flow Meter

$3,680.00

BRAND: ICON Process Controls

SKU: UFM-2000-50

Designed for 2-Inch Pipe Installations

The Ultraflo 2000 ultrasonic flow meter sensor is designed to measure the volume of clean liquid media using sound wave technology. The Ultraflo 2000 can measure both conductive and non-conductive liquids. The Ultraflo 2000 ultrasonic flow meter sensor emits 250 sound pulses/min making it an excellent choice for measuring dosing and pulsating flow rates. There are no moving parts and the full port design equates to a negligible pressure drop.

The unique body design minimizes dead space over the whole geometry. All wetted parts in contact with the medium are constructed of virgin HDPE material. The Ultraflo 2000 is characterized by its high repeatability and excellent measurement accuracy.

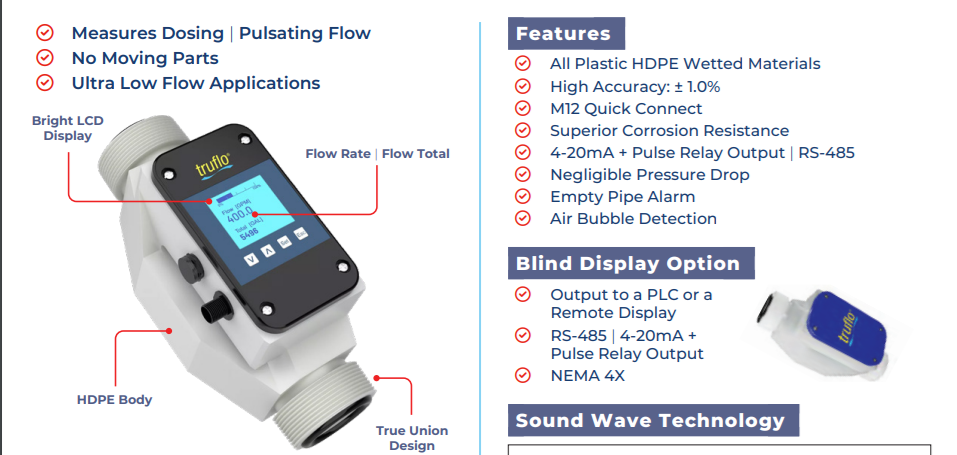

Features

  • Designed for Dosing | Pulsating Flows

  • Displays Flow Rate + Total

  • Completely Corrosion Resistant

  • Outputs 4-20mA + Pulse | RS-485

  • Empty Pipe Alarm

  • Full Port Design

  • No Moving Parts

Estimated Lead Time: Approximately 2 weeks from order confirmation. Contact us to verify current availability.

BRAND: ICON Process Controls

SKU: UFM-2000-50

Designed for 2-Inch Pipe Installations

The Ultraflo 2000 ultrasonic flow meter sensor is designed to measure the volume of clean liquid media using sound wave technology. The Ultraflo 2000 can measure both conductive and non-conductive liquids. The Ultraflo 2000 ultrasonic flow meter sensor emits 250 sound pulses/min making it an excellent choice for measuring dosing and pulsating flow rates. There are no moving parts and the full port design equates to a negligible pressure drop.

The unique body design minimizes dead space over the whole geometry. All wetted parts in contact with the medium are constructed of virgin HDPE material. The Ultraflo 2000 is characterized by its high repeatability and excellent measurement accuracy.

Features

  • Designed for Dosing | Pulsating Flows

  • Displays Flow Rate + Total

  • Completely Corrosion Resistant

  • Outputs 4-20mA + Pulse | RS-485

  • Empty Pipe Alarm

  • Full Port Design

  • No Moving Parts

Estimated Lead Time: Approximately 2 weeks from order confirmation. Contact us to verify current availability.

UltraFlo 2000 Datasheet
UltraFlo 2000 Instructions Manual
Product Specifications

UltraFlo 2000 Technical Specifications

In-line ultrasonic flow meter engineered for accurate measurement of clean conductive and non-conductive liquids, including dosing and pulsating-flow applications.

Measurement Performance

Measurement Technology Ultrasonic
Meter Type In-line, full-port flow meter
Suitable Media Clean conductive and non-conductive liquids
Measuring Range 0.8–80 GPM / 3–300 LPM
Accuracy ±1.0%
Sampling Rate 250 ultrasonic pulses per second
Flow Applications Continuous, dosing and pulsating flow

Process Specifications

Nominal Size 2 inches
Process Connection 2-inch true union
Wetted Material Virgin HDPE
Maximum Pressure 100 psi / 7 bar, non-shock
Media Temperature −20 to 160°F / −29 to 107°C
Pressure Drop Negligible, full-port design
Moving Parts None

Electrical & Outputs

Power Supply 24 VDC, 3.6 W
Electrical Connection M12 quick-connect
Analog Output 4–20 mA
Digital Output Pulse relay
Communication RS-485
Alarm Functions Empty-pipe alarm and air-bubble detection
System Integration Suitable for PLC and remote-display integration

Physical & Compliance

Environmental Rating IP67 / NEMA 4X
Dimensions 220 × 95 × 98 mm (L × W × H)
Weight 2.2 lb / approximately 1 kg
Display Lighted LCD showing flow rate, totalized quantity and bar graph
Blind Version Available without local display
Approvals CE, FCC and RoHS compliant
Part Number UFM-2000-50

Application note: The UltraFlo 2000 is intended for clean liquids in a completely filled pipe. Verify chemical compatibility, operating temperature, pressure and required flow range before ordering.
