Additional Information.

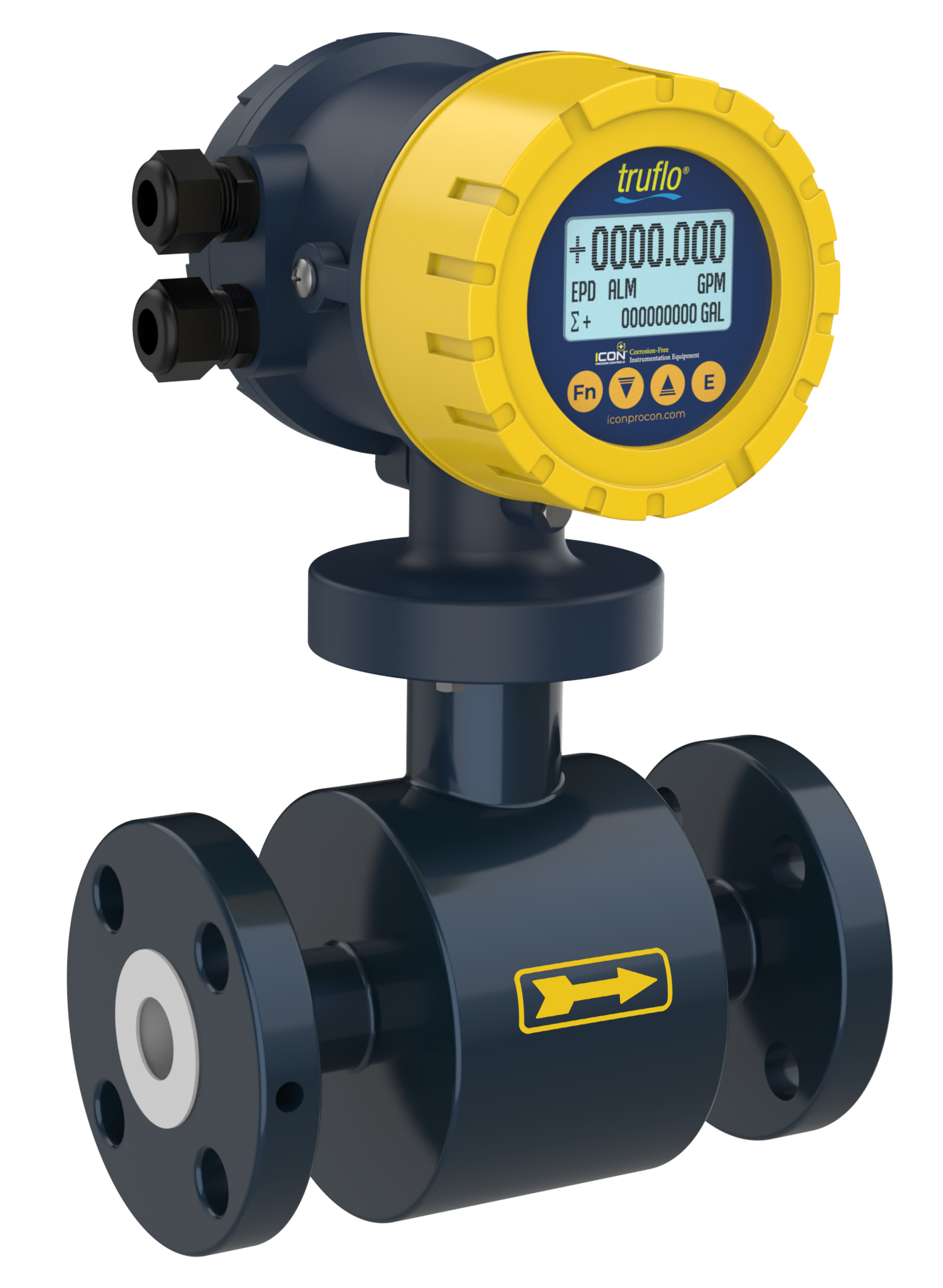

The Truflo MF1000 Series In-Line Magnetic Flow Meter is engineered to deliver high-accuracy flow measurement in a wide range of industrial and environmental applications. Utilizing electromagnetic flow measurement technology, the MF1000 provides reliable readings for conductive liquids without obstruction or pressure loss.
With no moving parts, the MF1000 minimizes maintenance requirements while ensuring long-term stability and performance. The meter features a durable, all-welded construction with a PTFE liner, making it suitable for corrosive and aggressive fluids.
Equipped with 4–20 mA, pulse output, RS485 Modbus, and optional HART communication, the MF1000 integrates seamlessly with SCADA systems, PLCs, data loggers, and industrial automation platforms, making it an ideal solution for modern process control environments.
MF1000 Magnetic Flow Meter Specifications
The Truflo MF1000 is an in-line magnetic flow meter for conductive liquids. Select the meter size, liner, electrodes, power supply, and converter arrangement to suit your process and installation.
| Measurement principle | Electromagnetic flow measurement |
|---|---|
| Flow direction | Forward, reverse, and net flow |
| Pipe size range | 3/8–20 in. (DN 10–500) |
| Measurement velocity | 0.3–10 m/s (0.98–32.8 ft/s) |
| Accuracy | ±0.5%; confirm the applicable accuracy basis for the selected configuration |
| Repeatability | ±0.1% |
| Minimum liquid conductivity | 20 µS/cm |
| Outputs and communications | 4–20 mA, frequency/pulse, RS-485, and HART; confirm availability by configuration |
| Display and converter | LCD display; integral or remote converter |
| Power options | 18–36 VDC, 85–240 VAC, or battery; confirm ordering options |
| Enclosure protection | IP65 / NEMA 4X |
| Ambient temperature | −20 to 60 °C (−4 to 140 °F) |
| Process temperature | −5 to 120 °C (23 to 248 °F) with PTFE liner |
| Standard wetted materials | PTFE liner; Hastelloy C electrodes |
| Standard body material | Carbon steel |
| Material options | Alternative electrode, liner, and housing materials available by configuration |
| Pressure rating | ANSI Class 150 flange: up to 285 psi; ANSI Class 600 flange: up to 800 psi |
Specifications and material options depend on the ordered model. Verify chemical compatibility, flange rating, power, and outputs before ordering. View the manufacturer datasheet.
Applications - The MF1000 magnetic flow meter is ideal for:
Industrial water and wastewater treatment systems
Chemical processing and dosing systems
Process control and fluid monitoring
Pump stations and distribution systems
Cooling water and utility systems
Municipal and environmental monitoring
Why Choose the MF1000
Proven electromagnetic technology for high accuracy and reliability
Designed for continuous industrial operation
Flexible outputs for easy system integration
Built to withstand harsh environments and chemical exposure
Trusted solution for water, wastewater, and industrial flow monitoring
Integration & Compatibility
The MF1000 flow meter is designed for seamless integration with:
SCADA systems
PLCs and industrial controllers
Standard outputs such as 4–20 mA, pulse, RS485 Modbus, and HART ensure compatibility across a wide range of monitoring and control platforms.
