A submersible Water Level Sensor Being Dropped in the Water
Keller Acculevel Submersible Pressure Transducer for Water Level Monitoring
A submersible Water Level Sensor Being Dropped in the Water
Keller Acculevel Submersible Pressure Transducer for Water Level Monitoring

Keller Acculevel NSF-Certified Submersible Water Level Sensor

from $664.00
Configuration:
Measurement Range:

Brand: Keller Pressure

High-accuracy submersible pressure transducer with 4–20 mA and RS485 outputs for drinking water, groundwater, reservoir, and tank-level monitoring.

The Keller America Acculevel submersible pressure transducer delivers highly accurate and reliable level measurement for environmental monitoring applications. With standard ±0.25% FS accuracy or optional ±0.1% Total Error Band (TEB), it ensures precise performance in surface water, streams, and reservoir monitoring. Designed for harsh environments, it features guaranteed lightning protection, making it ideal for installations in areas prone to electrical transients.

Features

  • Certified NSF 61 / NSF 372 for drinking water applications

  • Standard dual (4 - 20 mA & RS485) outputs simplify interface to controls, data collection, and telemetry systems, PLC and SCADA Systems.

  • Standard Accuracy: ±0.25% FS Optional Accuracy: ±0.1% FS

  • Lightning protection included with all 4-20 mA models

  • 16-bit internal digital error correction for cost-effective low Total Error Band (TEB)3

  • 316L stainless construction (standard) - Optional Titanium for severe applications.

  • 2-Year warranty covers defects in materials and workmanship.

  • User-rangeable analog output ensures compatibility as requirements change.

  • RS485 modified-MODBUS compatible interface allows up to 128 transmitters on a single bus.

  • Built-in the U.S.A. ARRA Section 1605 Compliant.

The Acculevel is suitable for:

  • Drinking water and potable water systems

  • Groundwater and well-level monitoring

  • Municipal water storage tanks

  • Reservoir and surface-water monitoring

  • Rivers, streams, and watershed studies

  • Stormwater monitoring

  • Environmental and hydrological applications

  • Industrial tank-level measurement

  • Integration with PLC, SCADA, telemetry, and data-logging systems

Typically ships in 3–5 business days. Contact our sales team today to place an order or request a quote.

Brand: Keller Pressure

High-accuracy submersible pressure transducer with 4–20 mA and RS485 outputs for drinking water, groundwater, reservoir, and tank-level monitoring.

The Keller America Acculevel submersible pressure transducer delivers highly accurate and reliable level measurement for environmental monitoring applications. With standard ±0.25% FS accuracy or optional ±0.1% Total Error Band (TEB), it ensures precise performance in surface water, streams, and reservoir monitoring. Designed for harsh environments, it features guaranteed lightning protection, making it ideal for installations in areas prone to electrical transients.

Features

  • Certified NSF 61 / NSF 372 for drinking water applications

  • Standard dual (4 - 20 mA & RS485) outputs simplify interface to controls, data collection, and telemetry systems, PLC and SCADA Systems.

  • Standard Accuracy: ±0.25% FS Optional Accuracy: ±0.1% FS

  • Lightning protection included with all 4-20 mA models

  • 16-bit internal digital error correction for cost-effective low Total Error Band (TEB)3

  • 316L stainless construction (standard) - Optional Titanium for severe applications.

  • 2-Year warranty covers defects in materials and workmanship.

  • User-rangeable analog output ensures compatibility as requirements change.

  • RS485 modified-MODBUS compatible interface allows up to 128 transmitters on a single bus.

  • Built-in the U.S.A. ARRA Section 1605 Compliant.

The Acculevel is suitable for:

  • Drinking water and potable water systems

  • Groundwater and well-level monitoring

  • Municipal water storage tanks

  • Reservoir and surface-water monitoring

  • Rivers, streams, and watershed studies

  • Stormwater monitoring

  • Environmental and hydrological applications

  • Industrial tank-level measurement

  • Integration with PLC, SCADA, telemetry, and data-logging systems

Typically ships in 3–5 business days. Contact our sales team today to place an order or request a quote.

Download Acculevel Datasheet
Request a Quote

  • Ordering Information

    The Keller Acculevel is configured specifically for your application. To ensure accurate product selection and the best level of service, please contact AWM Instruments to request pricing or place an order.

    1. Select the Pressure Range

    Custom pressure ranges are available from 0–3 ft WC to 0–900 ft WC.

    2. Select the Cable Length

    Cable lengths are customizable from 25 to 900 feet. The selected cable length must equal or exceed the sensor’s specified water-level range.

    3. Select the Cable and Seal Materials

    • PE cable with EPDM seals: Water and wastewater applications

    • Hytrel cable with Viton seals: Hydrocarbon applications

    • Tefzel cable with Viton or EPDM seals: Selected chemical applications

    Material compatibility should be confirmed before ordering.

    4. Select the Sensor Material

    • 316L stainless steel: Standard construction

    • Titanium: Optional construction for corrosive or demanding applications

    Review the Acculevel datasheet for complete specifications, configuration options, and available accessories.

    Need help configuring your sensor? Contact AWM Instruments to discuss your application. We will help you select the appropriate pressure range, cable length, materials, output, and accessories.

Keller Acculevel Specifications

Specification Details
Performance
Relative Pressure Ranges Custom ranges between 0–3 ft WC and 0–900 ft WC
Absolute Pressure Ranges Custom ranges between 0–2 bar and 0–11 bar (0–29 to 0–160 PSIA)
Standard Accuracy ±0.25% full scale
Optional Accuracy ±0.1% Total Error Band (TEB)
Resolution 0.002%
Electrical
Current Output 4–20 mA and RS485
Voltage Output 0–5 VDC or 0–10 VDC and RS485
Digital Communication RS485 with modified Modbus-compatible interface
Network Capacity Supports up to 128 transmitters on a single bus
Lightning Protection Included with all 4–20 mA models
Environmental and Construction
Ingress Protection IP68
Operating Temperature −10 to 60°C (14 to 140°F)
Compensated Temperature −10 to 80°C (14 to 176°F)
Standard Wetted Material 316L stainless steel
Optional Wetted Material Titanium for corrosive or demanding applications
Cable and Seal Options
Water and Wastewater PE cable with EPDM seals
Hydrocarbons Hytrel cable with Viton seals
Chemical Applications Tefzel cable with Viton or EPDM seals, subject to compatibility review
Available Cable Lengths Custom lengths from 25 to 900 ft
Certifications and Warranty
Drinking-Water Certifications NSF/ANSI 61 and NSF/ANSI 372
Domestic Compliance Made in the USA; ARRA Section 1605 compliant
Warranty 2-year manufacturer’s warranty

Specifications and available configurations are subject to change. Review the manufacturer’s datasheet or contact AWM Instruments to confirm requirements for your application.

Optional Accessories for Keller Pressure Transducers

Drying Tube Assembly - 900001.0002

Clear tube filled with indicating desiccant that attaches directly to cable vent tube to intercept water vapor. Highly recommended when operating in high humidity conditions. Must be periodically renewed as desiccant becomes saturated, turning color from blue (dry) to pink (saturated)

Bellows Assembly - 900001.0009

Alternative to the drying tube, this aneroid bellows attaches to cable vent tube and requires no periodic maintenance. Note that the use of the bellows results in a closed reference pressure system subject to zero shift errors induced by changing temperatures of up to 0.0004 psi/ºC. Not recommended for use with accuracy requirements of ±0.25% FS or better, or ranges < 2 psi

Cable Hanger - HU02216001

Single eye mesh cord grip style cable hanger for use with KELLER’s 0.230 inch O.D. cables, including PE, Hytrel, and Tefzel, used on Acculevel, Digilevel, Levelgage, LevelRat, Microlevel, and Nanolevel submersible level transmitters, and KELLER’s Valueline and Preciseline pressure transmitters.

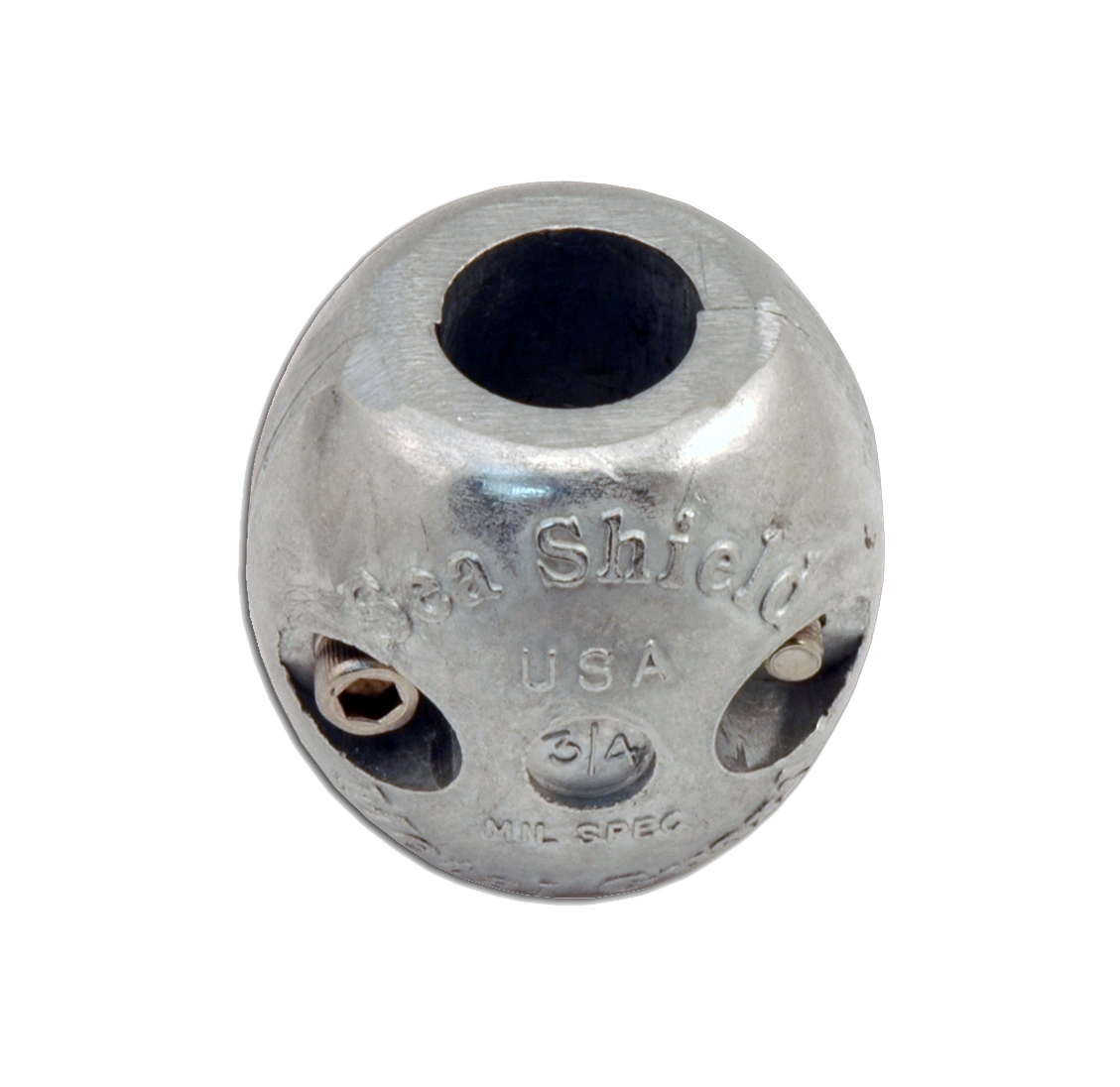

Stabilizing Weight - 900001.0033

Zinc prop shaft anode adapted to fit Ø21 mm O.D. of Levelgage, Acculevel, and LevelRat submersible level transmitters. Aids in corrosion resistance as well as helps ensure that the cable remains taut in turbulent conditions.

Sour Gas Trap

Effectively prevents any H2 S vapor from migrating down the atmospheric vent of the level transmitter, on account of its ability to absorb and trap any such vapors which enter it. The Sour Gas Trap is intended to be installed either stand-alone or in tandem with a KELLER America Drying Tube.

This submersible pressure transducer is ideal for water level monitoring in environmental, municipal, and industrial applications. Designed for accuracy, durability, and easy integration with control systems, it is a trusted solution for continuous level measurement.

Need help selecting the right sensor? Contact our team for expert guidance.
