The WA600 is a solid-state water sensor for detecting the presence of conductive solutions, such as water spills, water tank levels, and drainage ponds. This water alarm sensor features two stainless steel electrodes that are positioned at the desired point for liquid detection. When fluid is detected, a relay closes in the water level alarm and the signal can be used to sound an audible alarm or close a switch inside a piece of remote monitoring equipment. The relay output is fully isolated and can handle 2 amps of current. After the water level alarm sensor is in dry conditions, the detection sensor will automatically reset without requiring additional service. The water level alarm is rugged and durable and requires minimal maintenance.
Applications include; surface water monitoring, precision level detection, water level control, high water indication, and submersible marine low-level indication.
The water alarm sensor can be purchased to trigger an alarm upon contact with water or air (please specify when ordering).
WA600 Water Level Alert Sensor Specifications
Electronics: Solid state, fully encapsulated in epoxy
Electrodes: 304 stainless steel
Cable: 4 wire shielded; 25 ft length (may be extended to 500 ft)
Input Voltage: 12VDC to 36VDC
Current Draw: Continuous 4mA, Active 44 mAAlarm
Output: Isolated relay Contact
Type: Switch Closure Switching Voltage: 100Vdc max
Switching Current: 250 mA max
Carry Current: 400 mA
max Dimensions: 1 inch dia. x 5 inches long (2.5 cm dia. x 13 cm long)
Weight: 6 oz (170 g)

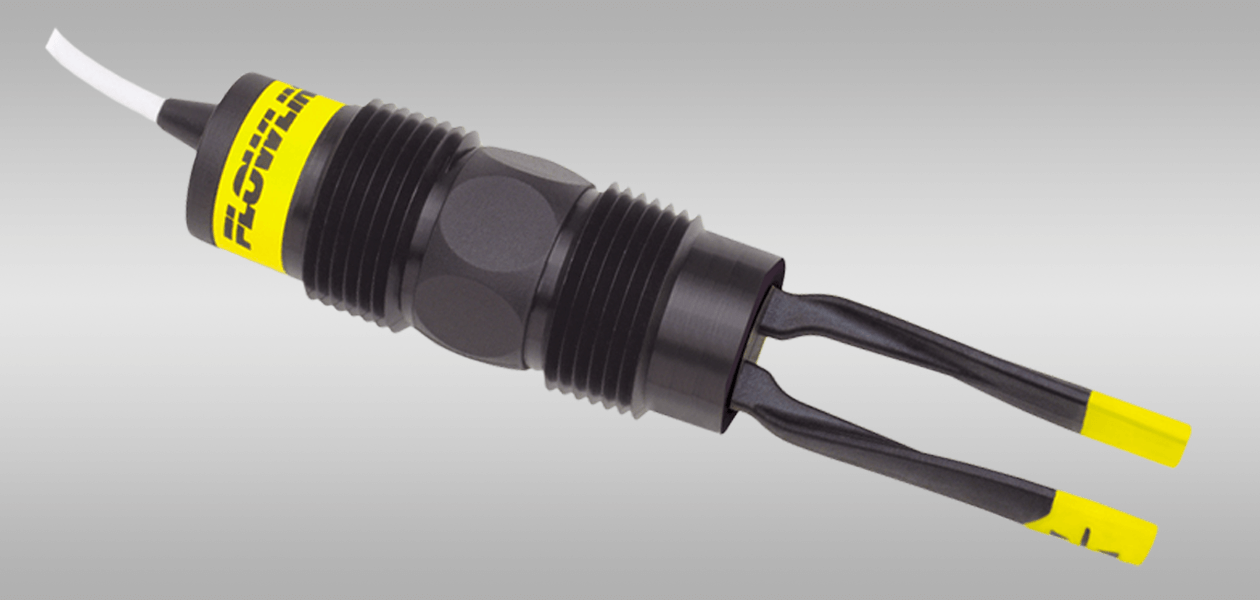

Switch-Tek LZ12 Vibration Point Liquid Level Switch
The general purpose vibration point liquid level switch provides reliable high or low liquid level detection in dirty liquids, wastewater, and applications with light to medium coating or scaling. Designed with a 1A relay output, this switch is ideal for integration with PLCs, relay controllers, alarms, and control panels.
Common media examples include wastewater, diluted caustic soda, copper sulfate, and other challenging liquid applications. For improved reliability, the sensor automatically adjusts for coating buildup and can provide a proactive maintenance alarm when cleaning is required.
The submersible PP-Ryton® level switch sensor can be mounted through the tank wall or installed inside the tank, offering flexible installation for industrial and wastewater applications.
This product is a recommended alternative to the discontinued WA600 Water Alarm Sensor.
