Product Description

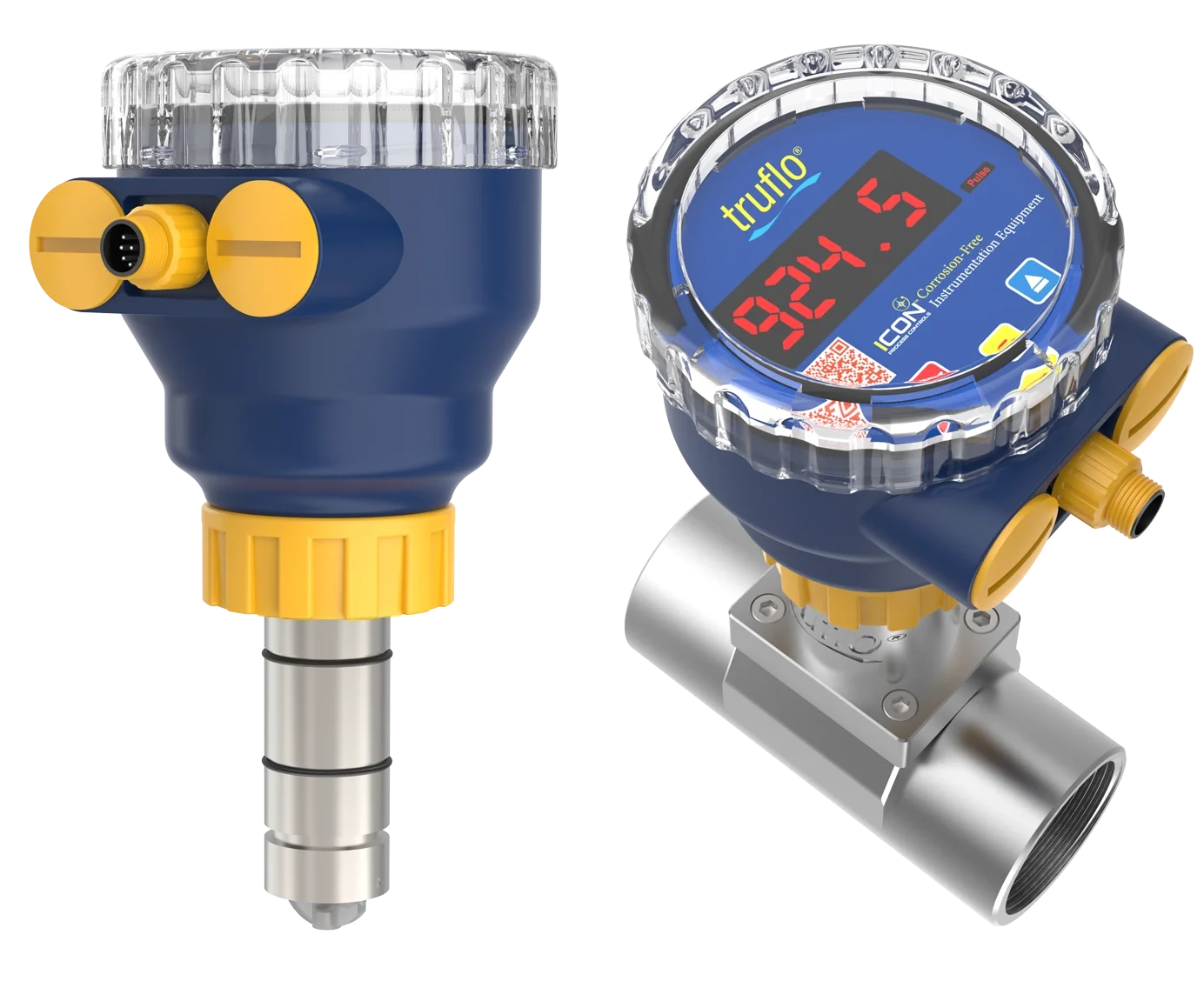

Icon Process Controls’ Truflo® TI3R Insertion Paddle Wheel Flow Meter combines precision, durability, and advanced technology to meet a range of industrial needs. These flow meters deliver accuracy of ±0.5% and are constructed from durable, chemical-resistant 316 stainless steel, ensuring reliability in challenging environments. Icon Process Controls also offers the TIR plastic Paddle Wheel Flow Meter – a true-union design with body materials available in PVC, PP, and PVDF!
The TI3R Series Insertion paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The stainless steel insertion flow meter sensor provides a frequency pulse | 4-20mA output, and is equipped with an optional 330° rotatable vivid LED display that shows Flow Rate. The re-engineered low-drag, fluid-dynamic design of the chemical paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor. Icon’s paddle wheel flow meter sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TI3R liquid flow meter sensor, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly. The digital flow meter sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meter sensors will also retrofit into any Signet® style fitting.
TI3R Series Installation Fittings (Call or email us for more information)
Durable Installation Tee Fittings for Demanding Applications
The Truflo Installation Fittings for insertion paddle wheel flow meters ensure secure, leak-proof installations with easy maintenance and material compatability for diverse applications. The Robust design guarantees reliable performance in challenging environments.
PVC | PP | PVDF Body
True Union Design
Excellent Chemical Resistance
Truflo SA Series Clamp-on Saddle Fittings
Truflo fittings are expertly made to provide accurate flow measurements and the right depth of sensor insertion. We offer a variety of robust saddles including branch, clamp-on, strap-on, and glue-on versions in a range of sizes, manufactured by ICON Process Controls. Because the saddles are lightweight, they can accommodate metal and plastic piping systems. These saddle fittings are simple to install and are designed for Schedule 40 or 80 Piping.
Suitable for Sch 80 & 40 Pipe Sizes
Will Accept Signet® Type Flow Meter
Excellent Chemical Resistance
PG Glue-On Adapter
Seamless Integration for Reliable Flow Measurement.
The Truflo PG Series Adapters are specialized components designed for use with flow meters, constructed from durable PVC or CPVC material. These adapters play a crucial role in facilitating the seamless integration of flow meters into various piping systems. With sizes ranging from 2 inches to 24 inches, the PG Series adapters offer a versatile solution to accommodate a wide range of pipe diameters
2″ – 24″ Pipe Sizes
Will Accept Signet® Type Flow Meter
Excellent Chemical Resistance
SWOL Weld-On Adapter
Precision Integration with Stainless Steel Strength.
The Truflo SWOL Weld-on Adapter is a specialized component designed for efficient integration with flow meters, providing a reliable solution for seamless connection to piping systems. This adapter features a stainless steel weldolet, ensuring robustness and durability in diverse industrial environments.
3″ – 12″ Pipe Sizes
Will Accept Signet® Type Flow Meter
316SS Weldolet with PVDF | PVC | 316SS | CPVC Insert
