Product Description

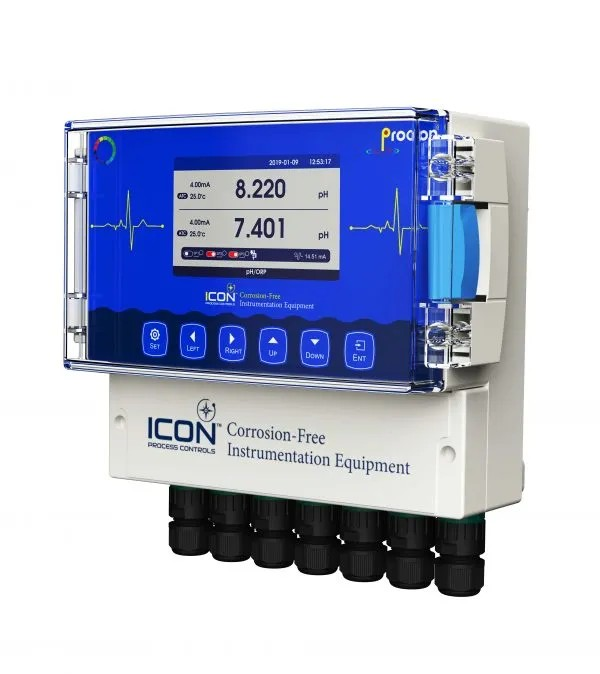

Perfect for outdoor use, the ProCon® D700 series with NEMA 4X protection is an extremely robust corrosion resistant single or double screen pH/ORP controller. The modular design is both easy to install and operate providing first measurement values in under one minute.
The D700 is packed with all the extra features included. No need to pay extra for relay, 4-20mA or RS485 outputs. The SimplCal® feature makes calibrating your sensor easier and quicker than ever before. The cost-saving quick and simple setup is done through our user-friendly step-by step on-screen menu. Active display of red alarm LED provides notification of out of bounds sensor readings and indication for sensor cleaning/recalibration or replacement.
Key Benefits
Built for reliable pH and ORP monitoring, control, alarming, and process integration in demanding water treatment applications.
Built-In Process Control
Includes three 5A relay outputs for high limit, low limit, and hysteresis control.
SCADA & PLC Ready
4–20mA and RS485 Modbus outputs allow easy integration with automation systems.
Onboard Data Logging
Stores up to 400 days of process data for trend review and troubleshooting.
Simplified Calibration
SimplCal® calibration helps reduce setup time and improve sensor maintenance.
Outdoor-Rated Enclosure
NEMA 4X / IP65 protection supports outdoor, washdown, and corrosive environments.
Operator Protection
Password protection helps prevent unauthorized setting changes in the field.
Typical Applications
Designed for industrial water treatment, chemical dosing, and process control applications requiring reliable pH and ORP monitoring.
D700 Series Technical Specifications
Industrial pH/ORP controller designed for monitoring, alarming, chemical dosing, and process control applications.
| Measurement Parameters | pH, ORP, Temperature, mA, mV |
|---|---|
| Measuring Range | pH: -2 to 16 pH ORP: -2000 to +2000 mV |
| Resolution | pH: 0.001 pH ORP: 1 mV |
| Temperature Range | 14 to 302°F / -10 to 150°C Sensor selection dependent |
| Display | Full-color, multi-line LCD display |
| Calibration | SimplCal® automatic calibration |
| Control Outputs | Three 5A relay outputs with high limit, low limit, and hysteresis control |
| Analog Output | 4–20 mA output |
| Communication | RS485 Modbus RTU |
| Data Logging | Up to 400 days of data logging with trend/curve display |
| Enclosure | Rugged corrosion-resistant polycarbonate enclosure |
| Environmental Rating | NEMA 4X / IP65 |
| Mounting | Wall mount |
| Protection | Password protection and active alarm indication |
