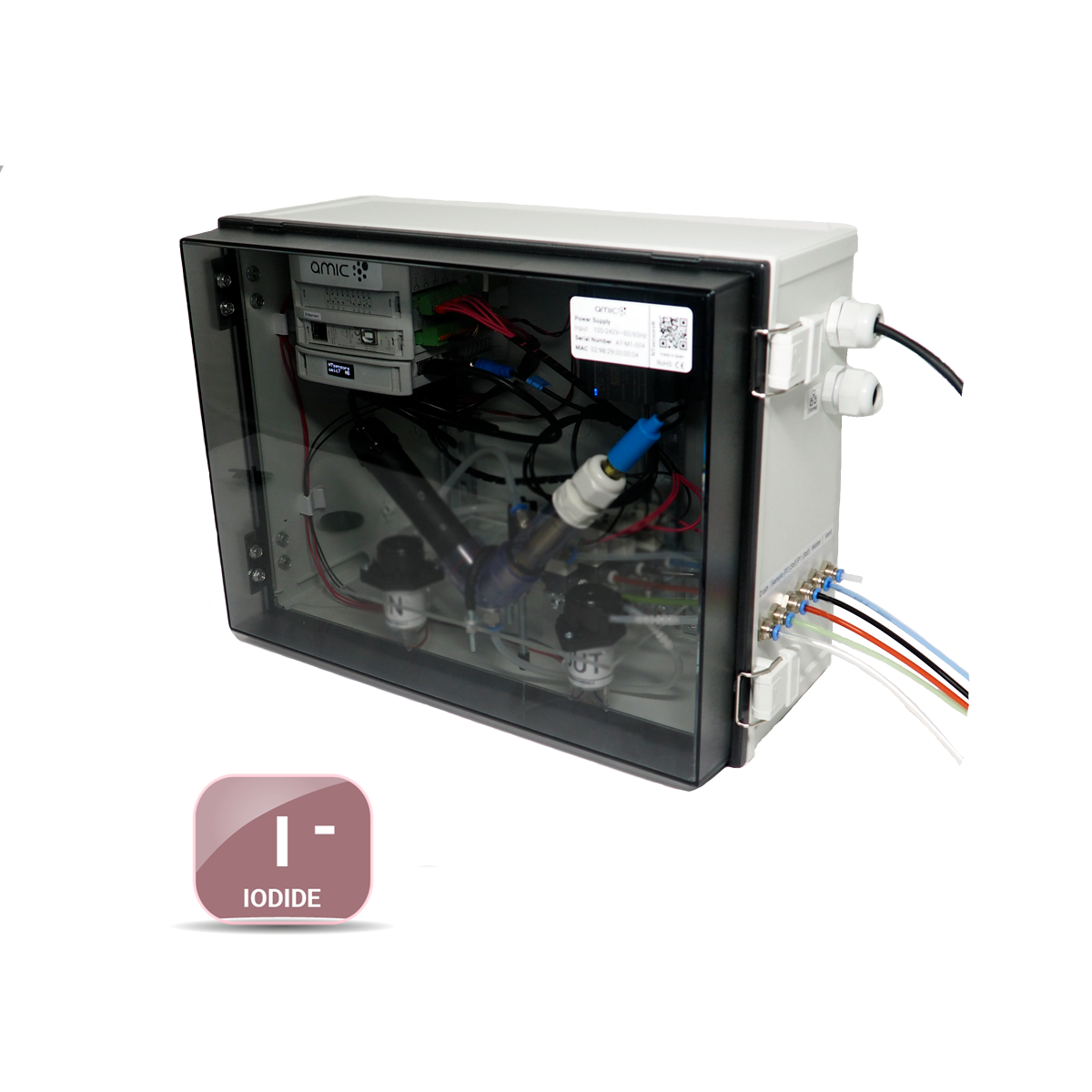

The NT Sensors Automatic Online Iodide Analyzer provides continuous iodide measurement using ion-selective electrode (ISE) technology. This fully automatic system performs calibration, measurement, and cleaning while sending live data through Modbus TCP/IP or Webserver connectivity for easy integration into monitoring and control systems.
Accurate iodine monitoring is essential for environmental protection, water treatment, and industrial process control. Using ion-selective electrode (ISE) technology, iodine levels can be measured in real time across applications such as wastewater discharge, chemical manufacturing, and agricultural runoff. These sensors provide fast, reliable results without the need for complex sample preparation, enabling continuous monitoring and easy integration with SCADA, PLC, and data logging systems. By maintaining precise iodine concentrations, operators can ensure regulatory compliance, optimize dosing processes, and protect both equipment and surrounding ecosystems.
Automatic Iodide Monitoring with Minimal Operator Intervention
The Automatic Online Iodide Analyzer is designed for applications where accurate, continuous iodide measurement is critical. Using electrochemical ion-selective electrode technology, the system delivers stable iodide readings with minimal drift while automating key operating functions such as calibration, measurement, and cleaning.
Its plug-and-play design helps simplify setup, while live communication through Modbus TCP/IP or Webserver supports integration with SCADA systems, PLCs, and remote monitoring platforms. With an IP66 protection rating, this analyzer is well suited for laboratory, industrial, and environmental monitoring environments.
Technical Specifications
| Measured Parameter | Iodide |
|---|---|
| Measurement Technique | Ion-selective electrode (ISE) potentiometry |
| Measurement Range | 1–10,000 mg/L |
| Measurement Units | mg/L or ppm |
| Automatic Functions | Calibration, measurement and cleaning |
| Sampling Frequency | 1–125 samples per 24 hours |
| Sample Points | 1 |
| Minimum Sample Volume | Approximately 100 mL |
| Sample Temperature | 10–35°C (50–95°F) |
| Maximum Sample Pressure | 1 bar (approximately 14.5 psi) |
| Sample Connection | ¼ inch |
| Communication | Modbus TCP/IP or webserver |
| System Integration | Compatible with PLC, SCADA and remote-monitoring systems |
| Power Supply | 85–240 VAC |
| DC Power Requirement | 12 VDC, 2 A |
| Enclosure Rating | IP66 |
| Dimensions |
300 × 400 × 180 mm 11.81 × 15.75 × 7.09 in. |
| Product SKU | A7-30X-127 |
Specifications are based on information published by the manufacturer and are subject to change without notice.
Continuous Iodide Monitoring Applications
Automated iodide measurement supports process control, research, environmental studies, and quality-control programs that require consistent data with less routine operator involvement.
Pharmaceutical Research & Production
Monitor iodide concentrations during pharmaceutical research, formulation, production, and process-development activities.
Environmental Monitoring
Measure iodide in water samples for environmental research, water-quality investigations, and long-term monitoring programs.
Chemical & Industrial Processes
Track iodide levels in liquid processes to support operational control, process optimization, and timely corrective action.
Laboratory Automation & Quality Control
Incorporate automatic iodide analysis into laboratory workflows and quality-control systems requiring repeatable scheduled measurements.
Why Choose the NT Sensors Iodide Analyzer?
Reagent-free operation helps reduce maintenance and ongoing operating costs
Fully automatic performance with built-in calibration, measurement, and cleaning
Real-time iodide monitoring for better process visibility and control
Modbus TCP/IP or Webserver communication for remote access and system integration
IP66-rated enclosure for demanding environments
SCADA / PLC-ready for industrial and laboratory automation workflows
