Technical Specifications
ProCon TB800 Series flow-through turbidity sensors are available in three measurement ranges for continuous water and process monitoring.
| Specification | Details |
|---|---|
| Model Selection | |
| TB800 | 0–20 NTU — Turbidity sensor and controller |
| TB801 | 0–100 NTU — Turbidity sensor and controller |
| TB802 | 0–200 NTU — Turbidity sensor and controller |
| Measurement | |
| Measurement Principle | 90° infrared scattered-light measurement |
| Light Source | 850 nm infrared |
| Accuracy | ±2% |
| Resolution | 0.001, 0.01, 0.1, or 1 NTU, depending on the selected measurement range |
| Process Conditions | |
| Sample Flow Rate | 300–500 mL/min (4.75–7.92 GPH) |
| Maximum Sample Pressure | 43.5 psi (0.3 MPa) |
| Operating Temperature | 32–113°F (0–45°C) |
| Sample Tubing | 3/8-inch PE tubing |
| Cleaning System | Electric valve with programmable automatic cleaning |
| Electrical and Communications | |
| Power Supply | 9–36 VDC |
| Sensor Output | RS485 Modbus |
| Controller Outputs | 4–20 mA and RS485 |
| Relay Outputs | Three configurable alarm relays |

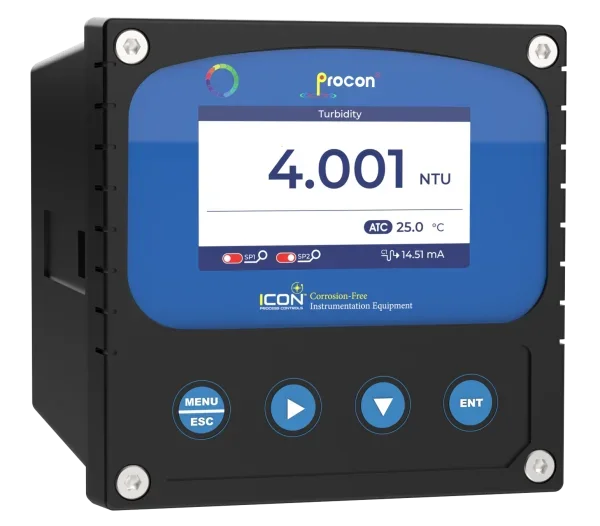

| Local Display | LCD digital controller display |
| Mechanical | |

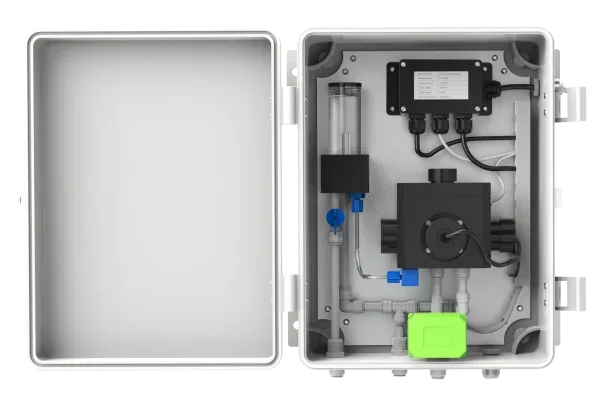

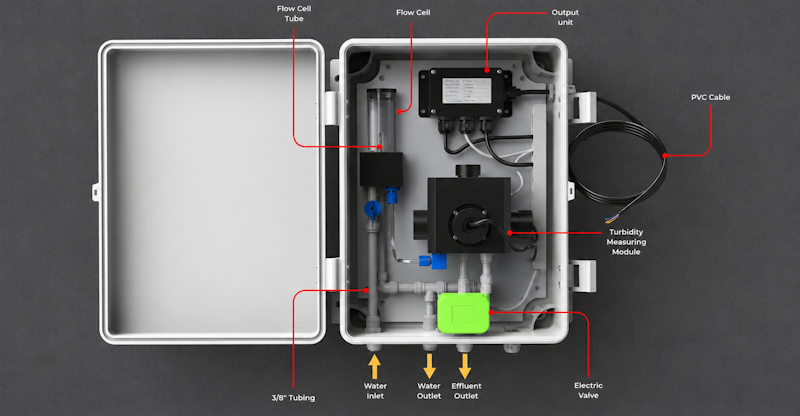

| Installation | Wall-mounted, flow-through measurement system |
| Protection Rating | IP65 |
| Overall Dimensions | 400 × 300 × 170 mm (15.75 × 11.81 × 6.69 in.) |
Specifications are subject to change. Contact AWM Instruments to confirm the appropriate measurement range and configuration.
Continuous Turbidity Monitoring Across Water Systems
The ProCon TB800 Series supports continuous turbidity measurement in water treatment, environmental monitoring, and industrial process applications.
Drinking Water Treatment
Monitor turbidity throughout treatment processes and finished water systems.
Wastewater Treatment
Track clarity in treated wastewater, tertiary treatment, and process-water streams.
Filtration Performance
Detect changes in filter effluent and evaluate filtration performance continuously.
Surface Water Monitoring
Observe turbidity changes in rivers, reservoirs, and other surface-water sources.
Industrial Process Water
Monitor water clarity for process control, reuse systems, and equipment protection.
Effluent Monitoring
Continuously monitor final effluent and identify unexpected changes before discharge.
