WQ101 Submersible Temperature Sensor W/ Analog Output

WQ101-0 Temperature Sensor With Threaded Housing for Process Measurement Applications


WQ101 Ambient and Water Temperature Sensor

$0.00

Item:

Brand: Global Water/YSI

Product: Air or Ambient Temperature | Shipping: Ships in approximately 8 weeks

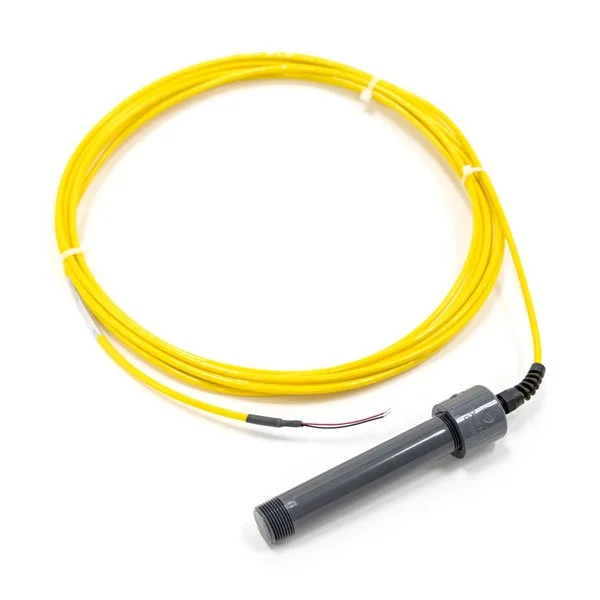

This temperature transmitter probe is molded to 25 ft of marine grade cable, with lengths up to 500 ft available upon request. This temperature sensor has a two wire configuration for minimum current draw. Electronics are completely encapsulated in marine grade epoxy within a stainless steel housing. Ideal for measuring temperature in groundwater or surface water applications as well as measuring ambient temperature, this sensor can be added as an essential component to a weather station. Easily configurable with Data Loggers, PLC, SCADA, Digital Displays or any other 4-20 mA compatible monitoring system.

NOTE: The online version comes with ¾ x 6 inch PVC pipe nipple, threaded both ends with cap (¾" NPT PVC housing).

Features

Fully encapsulated electronics
Two-Wire 4-20 mA output
Marine-grade cable with strain relief
Stainless steel housing
Ideal for air or water (Submersible)
Custom cable length up to 500ft

Please call or email us for pricing on this product.

Brand: Global Water/YSI

Product: Air or Ambient Temperature | Shipping: Ships in approximately 8 weeks

NOTE: The online version comes with ¾ x 6 inch PVC pipe nipple, threaded both ends with cap (¾" NPT PVC housing).

Features

Fully encapsulated electronics
Two-Wire 4-20 mA output
Marine-grade cable with strain relief
Stainless steel housing
Ideal for air or water (Submersible)
Custom cable length up to 500ft

Please call or email us for pricing on this product.

Datasheet

Request Sales Quote

Applications

Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications

Specifications

Output: 4-20 mA | Range: -50° to +50°C | Accuracy: ±0.2°F or ±0.1°C | Maximum Pressure Open Water: 0 to 200 psi Online: 50 psi

Operating Voltage: 10 to 36 VDC | Current Draw: Same as sensor output | Warm-up Time: 5 seconds minimum | Operating Temperature: -58° to +212°F (-50° to +100°C)

Size of Probe Open Water: ¾" dia. x 4½" long (1.9 cm dia. x 11.4 cm long) | Online: 1.7" dia. x 8" long (4.3 cm dia. x 20.3 cm long)

Weight Open Water: 8 oz (227 g) Online: 9.4 oz (272 g (Plus Cable)

Related Products

This temperature sensor can be connected to a variety of 4-20 ma compatible systems. We offer data loggers, digital displays and wireless telemetry system that can paired with your temperature sensor for a complete monitoring system. Contact us for additional details.
