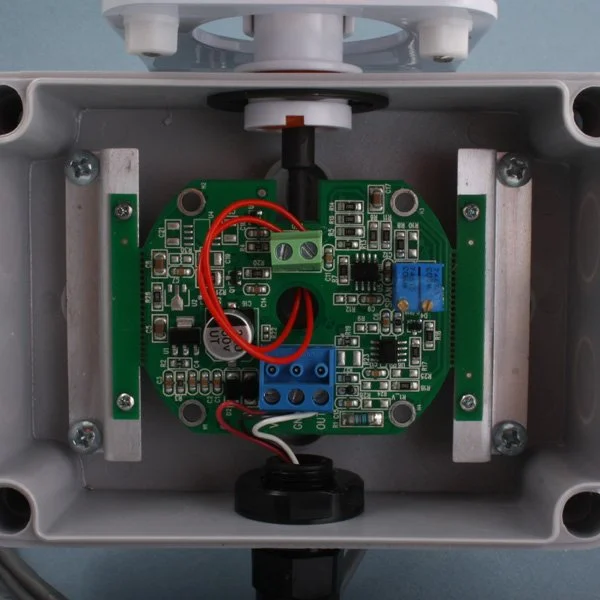

Air Temperature Transmitter with Solar Shield and White Junction Box
Junction box mounted on a pole measuring ambient temperature
210-501 Temperature Transmitter with Solar Radiation Shield
Air Temperature Transmitter with Solar Shield and White Junction Box
Junction box mounted on a pole measuring ambient temperature
210-501 Temperature Transmitter with Solar Radiation Shield

210-501 Ambient Temperature Transmitter with Solar Radiation Shield

from $469.00
Items:

MFR: NovaLynx

The 210-501 Temperature Transmitter measures outside air temperature using a platinum RTD sensor enclosed in a 6-plate solar radiation shield. It produces a 4-20 mA output signal which is an industrial standard signal for process control monitoring. Most PLCs (Programmable Logic Controllers), RTUs (Remote Telemetry Units), and data acquisition systems accept this signal directly.

If a voltage signal is required, the sensor output may be converted by reading the voltage across a precision resistor in series with the signal wire. When the 4-20 mA signal is dropped across a 250 ohm resistor, the output will be 1 to 5 Vdc.

The 210-501 can be operated as a loop-driven device or connected in 3-wire configuration. 25 feet of 3-conductor cable is included with the sensor. The cable can be removed and replaced with a longer length if needed, up to 500 feet.

Shipping Note: This product typically ships within five business days.

How to order: Choose the transmitter with the appropriate cable lenght from the menu above. Contact us with any questions.

MFR: NovaLynx

The 210-501 Temperature Transmitter measures outside air temperature using a platinum RTD sensor enclosed in a 6-plate solar radiation shield. It produces a 4-20 mA output signal which is an industrial standard signal for process control monitoring. Most PLCs (Programmable Logic Controllers), RTUs (Remote Telemetry Units), and data acquisition systems accept this signal directly.

If a voltage signal is required, the sensor output may be converted by reading the voltage across a precision resistor in series with the signal wire. When the 4-20 mA signal is dropped across a 250 ohm resistor, the output will be 1 to 5 Vdc.

The 210-501 can be operated as a loop-driven device or connected in 3-wire configuration. 25 feet of 3-conductor cable is included with the sensor. The cable can be removed and replaced with a longer length if needed, up to 500 feet.

Shipping Note: This product typically ships within five business days.

How to order: Choose the transmitter with the appropriate cable lenght from the menu above. Contact us with any questions.

Why Measure Ambient Temperature?

Accurate ambient temperature data helps operators understand changing environmental conditions, identify temperature trends, and make informed control and maintenance decisions. When connected to a PLC, RTU, data logger, or telemetry system, the 210-501 provides continuous temperature information for weather monitoring, industrial sites, agriculture, water and wastewater facilities, and environmental monitoring stations.

210-501 Temperature Transmitter with Solar Radiation Shield

210-501 Specifications

  • Sensor type: Pt1000 RTD

  • Range/Operating temperature: -40 to 140 °F (-40 to 60 °C)

  • Accuracy: ±0.5 °C @ 25 °C

  • Response time: 100 ms

  • Materials: 304 stainless steel (probe), polycarbonate (housing)

  • Electrical connection: Terminal block (internal), tinned leads (cable)

  • Power requirement: 12 to 36 Vdc

  • Output signal: 4-20 mA loop or 3-wire configuration

  • Cable: 3-conductor 24 AWG, 25 feet (7.6 m) standard, 500 feet (152 m) maximum

  • Enclosure rating: NEMA-4X (IP66)

  • Weight/Shipping: 1 lb 7.4 oz/3 lbs (0.66 kg/1.4 kg
