Weather Monitoring Sensors and Systems 260-2501-A 8" Tipping Bucket Rain Gauge
Novalynx 8" Tipping Bucket Rain Gauge Image 1 of 5
Novalynx 8" Tipping Bucket Rain Gauge
Pole Mounted Rain Gauge Image 2 of 5
Pole Mounted Rain Gauge
8 Inch tipping bucket rain gauge mounted on a tripod for easy installation Image 3 of 5
8 Inch tipping bucket rain gauge mounted on a tripod for easy installation
260-RGAI-70 Rain Gauge Analog Interface. Pulse to Analog Converter Image 4 of 5
260-RGAI-70 Rain Gauge Analog Interface. Pulse to Analog Converter
GL500-2-1 Three Channel Datalogger for Data Recording Image 5 of 5
GL500-2-1 Three Channel Datalogger for Data Recording
Novalynx 8" Tipping Bucket Rain Gauge
Pole Mounted Rain Gauge
8 Inch tipping bucket rain gauge mounted on a tripod for easy installation
260-RGAI-70 Rain Gauge Analog Interface. Pulse to Analog Converter
GL500-2-1 Three Channel Datalogger for Data Recording

260-2501-A 8" Tipping Bucket Rain Gauge

from $66.00

Brand: NovaLynx

The 260-2501-A Tipping Bucket Rain Gauge is made for the National Weather Service to offer a dependable, cost-effective rain sensor. It includes an inner funnel to even out the rain flow for better accuracy at higher rainfall rates. Its simple design ensures trouble-free operation and precise rainfall measurements. The tipping bucket mechanism triggers a sealed reed switch for every 0.01" or 1 mm of rainfall (other calibrations available). The gauge has an 8" opening and is made of powder-coated and anodized aluminum. The funnel screen stops debris from entering the gauge. It comes with mounting legs and 25' of signal cable.

Datasheet

Request a sales quote by phone or email.

Shipping Dimensions: 12”x12”x18” @ 7 LBS (each rain gauge)

ITEM:
Quantity:
Add To Cart

Brand: NovaLynx

The 260-2501-A Tipping Bucket Rain Gauge is made for the National Weather Service to offer a dependable, cost-effective rain sensor. It includes an inner funnel to even out the rain flow for better accuracy at higher rainfall rates. Its simple design ensures trouble-free operation and precise rainfall measurements. The tipping bucket mechanism triggers a sealed reed switch for every 0.01" or 1 mm of rainfall (other calibrations available). The gauge has an 8" opening and is made of powder-coated and anodized aluminum. The funnel screen stops debris from entering the gauge. It comes with mounting legs and 25' of signal cable.

Datasheet

Request a sales quote by phone or email.

Shipping Dimensions: 12”x12”x18” @ 7 LBS (each rain gauge)

Brand: NovaLynx

The 260-2501-A Tipping Bucket Rain Gauge is made for the National Weather Service to offer a dependable, cost-effective rain sensor. It includes an inner funnel to even out the rain flow for better accuracy at higher rainfall rates. Its simple design ensures trouble-free operation and precise rainfall measurements. The tipping bucket mechanism triggers a sealed reed switch for every 0.01" or 1 mm of rainfall (other calibrations available). The gauge has an 8" opening and is made of powder-coated and anodized aluminum. The funnel screen stops debris from entering the gauge. It comes with mounting legs and 25' of signal cable.

Datasheet

Request a sales quote by phone or email.

Shipping Dimensions: 12”x12”x18” @ 7 LBS (each rain gauge)


  • Sensor type: Tipping bucket

    Output: 0.1 second switch closure

    Switch: Sealed reed switch

    Sensitivity: 1 tip per 0.01" or 1 tip per 1 mm (other calibrations available)

    Accuracy: ± 2% up to 2"/hr

    Contact rating: 3 watts, 0.25 amps, 24 Vdc

    Size: 8" dia x 14-1/2" high

    Mounting: 3 legs, 1/4" diameter bolt holes on 9-1/2" diameter bolt circle

    Weight/shipping: 4 lbs/5.5 lbs

Recommended Products for your Rain Gauge


Cellular Wireless Pressure Transmitter - AWM Instruments.jpg

Remote Monitoring Station

Paired with your existing cloud or the SignalFire Cloud, the RANGER system is the simplest way to access all of your sensor data from one platform. Whether you’re converting an existing system or building a new system, going wireless with SignalFire means you can go live and start accessing your sensor data almost immediately.

LEARN MORE ABOUT THE RANGER NODE

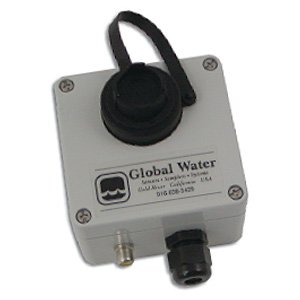

GL500-2-1 Data Logger In a Nema 4X Enclosure

GL500-2-1 Data Logger

The GL500-2-1 can monitor two 4-20 mA sensors and features a scalable digital input that accepts switch closure signals and pulses from various external devices. The logger provides switched power to the sensors based on the programmable sample interval and sensor warm up time settings. Two- and three-wire sensors can be quickly connected to the datalogger’s internal terminal strip and calibrated via the included Global Logger II software.

LEARN MORE

260-RGAI-70 Rain Gauge Analog Interface

260-RGAI-70 Rain Gauge Analog Interface

The 260-RGAI-70 Rain Gauge Interface converts the signal from a tipping bucket rain gauge into a 4-20 mA current loop signal, ideal for input to a PLC or SCADA system. Each tip of the rain gauge bucket causes the output signal to increase 1% of full scale. Full scale represents 100 tips of the bucket.

LEARN MORE



You may also like

260-2520 Forestry Rain Gauge 260-2520 Forestry Rain Gauge 260-2520 Forestry Rain Gauge
260-2520 Forestry Rain Gauge
from $48.00
260-WS-2501 Data Logging Rain Station
260-WS-2501 Rainfall Recording Station
$1,088.00
TR-525 8" Tipping Bucket Rain Gauge Tipping Bucket Rain Gauge Internal  Mechanism Global Water Battery Powered Data Logger GL500-2-1 heated version kit.gif 260-RGAI-70 Rain Gauge Analog Interface Texas Electronics Anodized Aluminum Bird Spikes - Bird Repellant
TR-525 8" Tipping Bucket Rain Gauge
from $757.00
