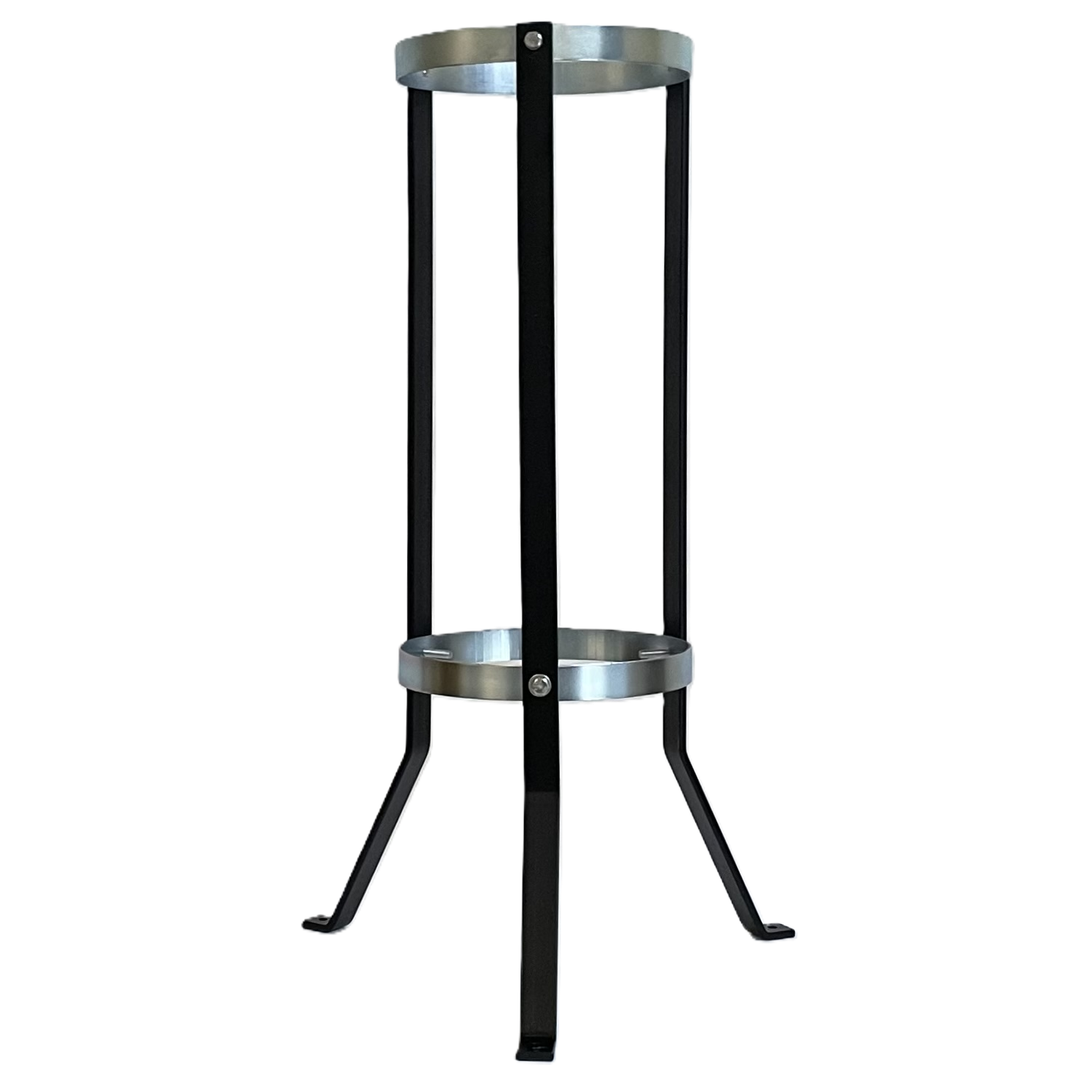

260-2510S Tripod Support for 260-2510 Standard Rain Gauge
260-2510 NovaLynx Standard Rain and Snow Gauge_AWM_Instruments
260-2510S Tripod Support for 260-2510 Standard Rain Gauge

260-2510 Standard Rain and Snow Gauge

from $58.00
Item:

Brand: NovaLynx

Model 260-2510

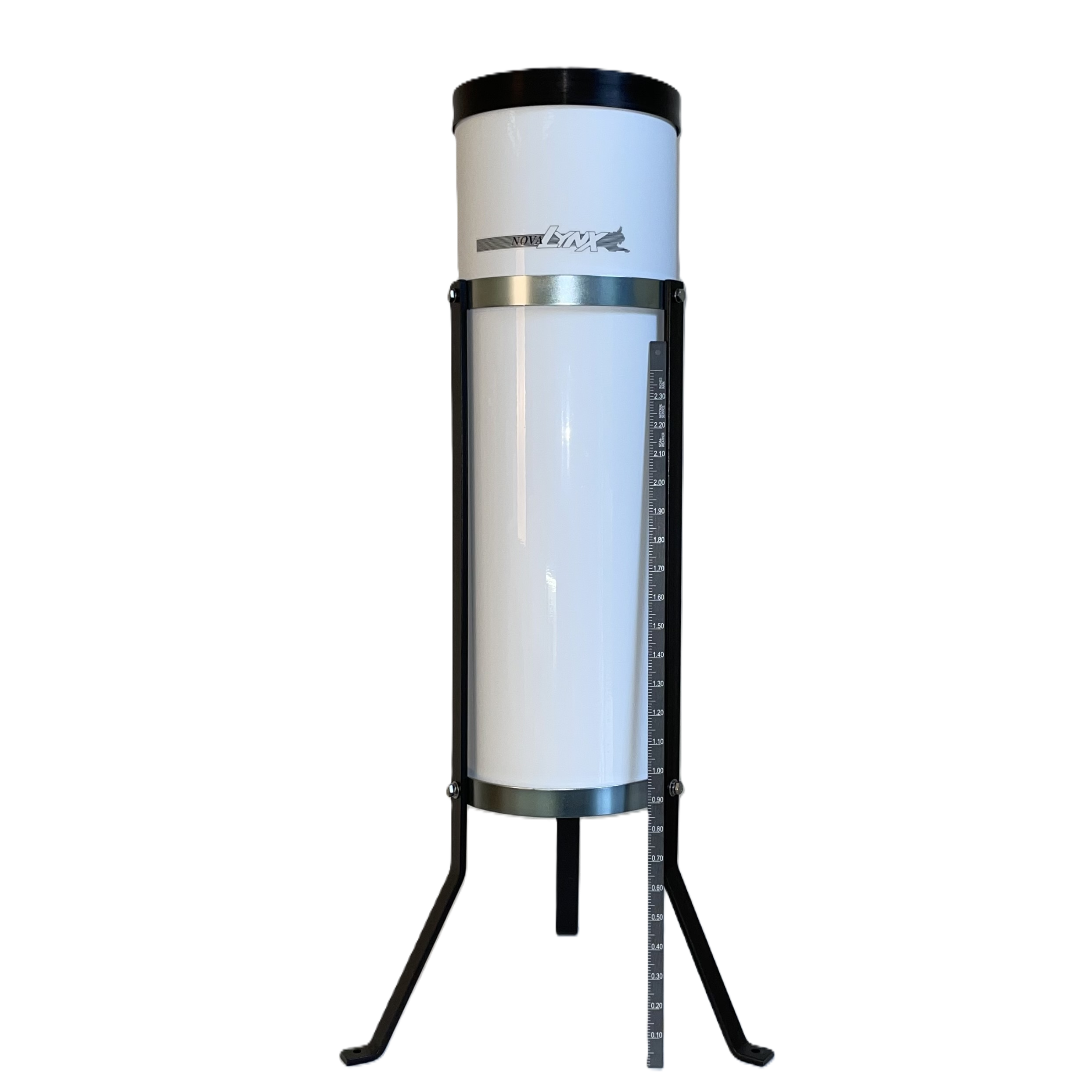

The 260-2510 Standard Rain and Snow Gauge provides reliable manual measurement of both liquid precipitation and snowfall. Its durable, all-aluminum construction offers a total rainfall capacity of 20 inches and is suitable for long-term monitoring.

Rain entering the precision-edged funnel is directed into an inner measuring receiver. The gauge uses a 10:1 collection ratio, meaning 1 inch of rainfall produces a 10-inch water depth in the receiver for easier, more precise readings. The receiver measures up to 2 inches of rainfall. Additional precipitation flows into the outer chamber, where it can be measured separately after the receiver has been emptied. Measurements can be read to 0.01 inch or 0.4 mm.

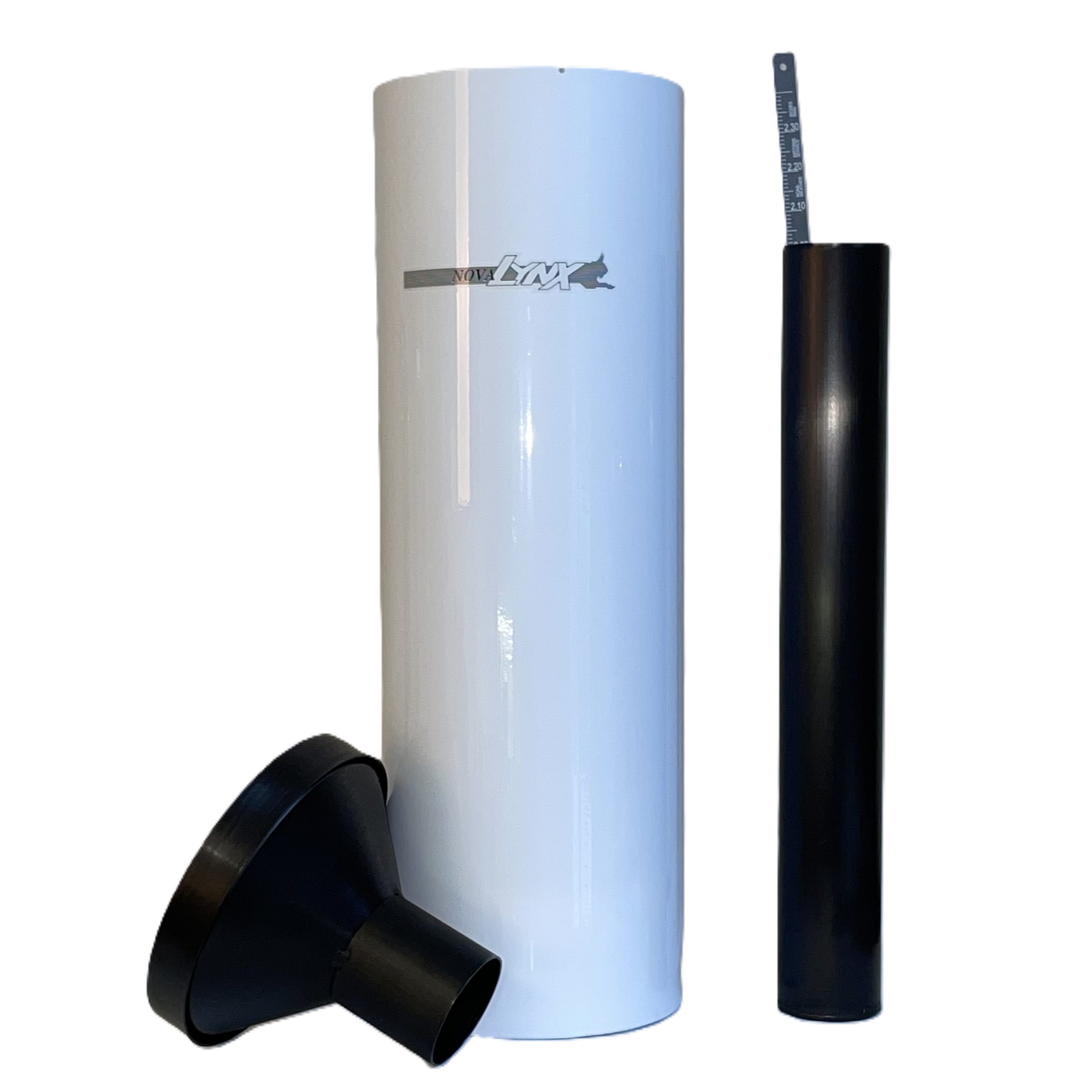

For snowfall measurement, the funnel and inner receiver are removed, allowing snow to collect directly in the outer can. The collected snow is then melted and measured using the receiver and included dipstick. A black G-10 fiberglass epoxy measuring stick with English and metric graduations is supplied with the gauge. An optional tripod support is also available.

Shipping: This item ships in 5 - 7 business days—Contact us today to get up-to-date product information

Ordering Options: Order Online or by Phone

Brand: NovaLynx

Model 260-2510

The 260-2510 Standard Rain and Snow Gauge provides reliable manual measurement of both liquid precipitation and snowfall. Its durable, all-aluminum construction offers a total rainfall capacity of 20 inches and is suitable for long-term monitoring.

Rain entering the precision-edged funnel is directed into an inner measuring receiver. The gauge uses a 10:1 collection ratio, meaning 1 inch of rainfall produces a 10-inch water depth in the receiver for easier, more precise readings. The receiver measures up to 2 inches of rainfall. Additional precipitation flows into the outer chamber, where it can be measured separately after the receiver has been emptied. Measurements can be read to 0.01 inch or 0.4 mm.

For snowfall measurement, the funnel and inner receiver are removed, allowing snow to collect directly in the outer can. The collected snow is then melted and measured using the receiver and included dipstick. A black G-10 fiberglass epoxy measuring stick with English and metric graduations is supplied with the gauge. An optional tripod support is also available.

Shipping: This item ships in 5 - 7 business days—Contact us today to get up-to-date product information

Ordering Options: Order Online or by Phone

Documentation & Resources Datasheets, manuals and product information
PDF Product Datasheet Specifications and ordering information View PDF Installation Manual Installation, wiring and setup instructions View PDF 260-2510S Tripod Support Operation and application guidance View
Need help configuring this product? Contact AWM Instruments for pricing and application assistance.
Get Pricing & Availability

Specifications

  • Sensor Type: Tipping Bucket

  • Output: 0.1-second switch closure

  • Switch: Sealed reed switch

  • Sensitivity: One tip per 0.01″ (other calibrations available).

  • Accuracy: ±2% up to 2 in./hr.

  • Contact rating: 3 watts, 0.25 amps, 24 VDC

  • Size: 8″ diameter x 14.5″ high

  • Mounting: Three legs with 1/4-inch diameter bolt holes on a 9.5-inch diameter bolt circle

  • Weight / Shipping: 4 lbs / 6 lbs
